Modular Mini/Capillary Blood Collection Tube Assembly Line Manufacturer

Modular Mini/Capillary Blood Collection Tube Assembly Line

Request a Quote

View All: http://medical-machinery.com/1-3-2-modular-mini-capillary-blood-collection-tube-assembly-line.html

6,000-8,000 pcs/h

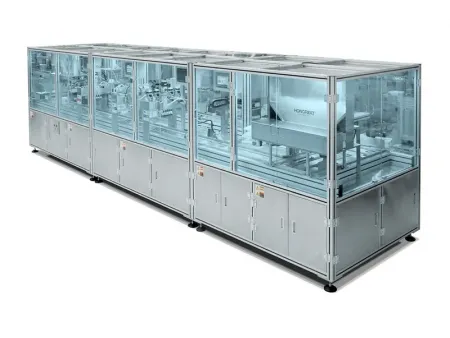

Automatic production line for assembling mini capillary blood collection tubes

Production capacity 6,000-8,000 pcs/h
Tube size Ø11×45mm
Cap size As per client’s samples

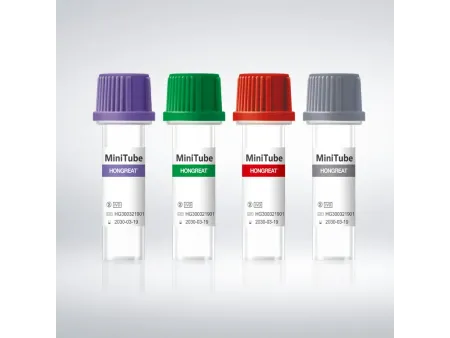

Finished Product Samples

Capillary blood collection tubes are used for children/kids blood testing. This modular assembly line is built to be adaptable, offering 6,000 to 8,000 tubes per hour. Each module can be configured to fit specific production needs, supporting the precise assembly of 11×45mm tubes.

Work Flow

Tube loading

Inversion detection

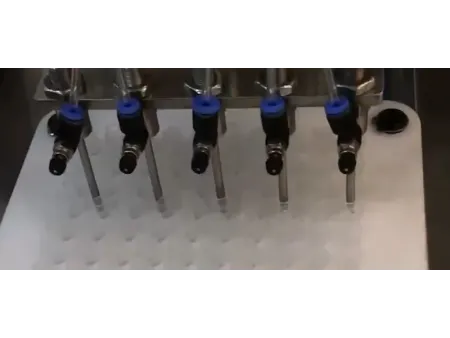

Additive dosing (EDTA, heparin, clot activator, sodium citrate)

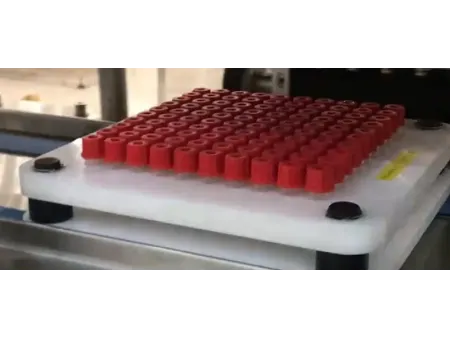

Capping

Foam tray loading

Heat shrink packaging

Completion

Technical Specifications

Production capacity	6,000-8,000 pcs/h
Tube size	Ø11×45mm
Cap size	As per client’s samples
Control system	PLC control with touch screen
Additive dosing system	K2/K3 EDTA: 10 sets of precision ceramic pump
	Blood clot activator (BCA): 10 sets of precision ceramic pump
	Sodium citrate: 5 sets of precision ceramic pump
Additive drying system	3 PTC dust-free drying machines
Detection system	Inverted tube detection before additive dosing
Detection system	Alarm for shortage of foam trays
Air consumption	Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa
Power	20kW/AC380V
