Welding Equipment

Your welding application needs are our concern, satisfying your challenges with proven performance

MMA welder type W, as a newly launched model, leads the trend of multifunctional digital display welding machines. Through an intuitive operating interface, welders can easily adjust parameters. Its unique design directly links welding current and Electrode Diameter, presenting users with more intuitive welding information.

In addition, this welder comes with optional sizes: 25*13*20cm or 36*14*23cm, providing flexible adaptability for various working environments.

Model Power Voltage No-load Voltage Rated Input Power Output Current Range Duty Cycle Electrode Diameter Weight Dimension
ARC120W 230V土10% 50/60hz(1ph) 75V 5.5KVA 10-120A 60% 1.5-3.2mm(1/8") 2.8kg 25*13*20 cm
ARC140W 230V土10% 50/60hz(1ph) 75V 6.1KVA 10-140A 60% 1.5-3.2mm (1/8") 3.0kg 25*13*20 cm
ARC160W 230V土10% 50/60hz(1ph) 75V 6.9KVA 10-160A 60% 1.5-4.0mm(5/32") 3.6kg 25*13*20 cm
ARC180W 230V土10% 50/60hz(1ph) 75V 8.2KVA 10-180A 60% 1.5-5.0mm(3/16") 4.0kg 36*14*23 cm
ARC200W 230V土10% 50/60hz(1ph) 75V 9.6KVA 10-200A 60% 1.5-5.0mm(3/16") 4.5kg 36*14*23 cm
Features
  • User-friendly interface

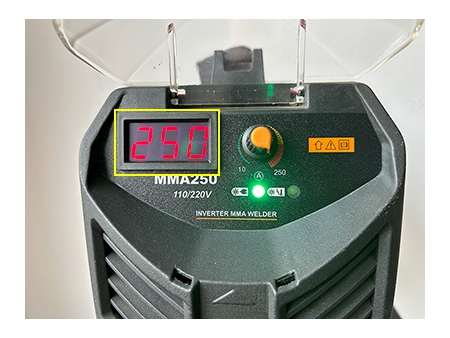

    The intelligent LED screen provides you with accurate data display, like current and Electrode Diameter, helps you read it easier and more clearly.

  • Advanced IGBT inverter &MCU digital control

    Provides stable performance, reliability and high consistency.

  • Portable & lightweight

    This welder is easy to operate and carry.

  • Wide range of input voltages

    155-265V (1ph) 50/60HZ.

  • Generator compatible

    The MMA welder type W will be able to operate when powered by a generator.

  • Premium welding performance

    Support welding rods with a maximum diameter of 1.6mm (1/16") or 5.0mm(3/16"). The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Good performance on various types of welding rods, such as E7018, E6010, E6011, E6013, E308, etc.

  • Hot start

    Provides very easy, quick and reliable arc starts upon contact with the workpiece.

  • Anti-stick

    Avoid electrode sticking in the workpiece during welding, ensures no sticking and smooth welds.

  • Built-in arc force

    Provides smooth and continuous arc, ensures stable welding, and maintains deeper penetration.

  • Safety protection

    The welder is equipped with automatic compensation for overload, overheating protection, voltage fluctuation, and short circuit protection.

  • Lift TIG capabilities

    Integrated lift-TIG functionality enables TIG welding using argon gas. You can choose stick or lift TIG mode as you want.

  • Optional sizes come with

    25*13*20cm or 36*14*23cm.

Applications
  • Welding equipment for minor construction projects
  • Home decoration industry welding machine
  • Welding equipment for farm and ranch
  • Portable welder for repairs and home DIY
Standard Accessories
  • Electrode holder with cable

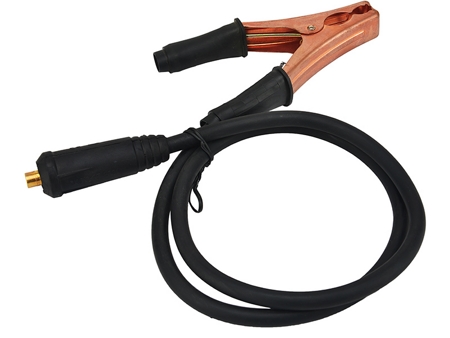

  • Earth clamp with cable
Optional Accessories
  • Plastic tool box
  • Welding mask
  • Wire brush
FAQs
The MMA Welder Type T supports lift TIG.
Yes, it can be powered by a generator, as a movable welding machine.
MMA Welder Type W is suitable for various types of welding rods such as E7018, E6010, E6011, E6013, E308, and more.
SONSCN has over 20 years of experience as a professional welding equipment manufacturer. We not only provide welding machines, but also offer related welding equipment accessories.
MMA Welder Type W is equipped with LED display screen, so the current operating information of the welder can be monitored in real-time, allowing operators to quickly adjust parameters. This MMA welder makes light industrial tasks and repair work quick and easy.
SONSCN is a professional manufacturer of welding equipment with a complete welding machine production line. We provide production and customization service of welding equipment.
Yes, Our Products have obtained multiple patented technologies, as well as international CE certification. For more information, please to view.
