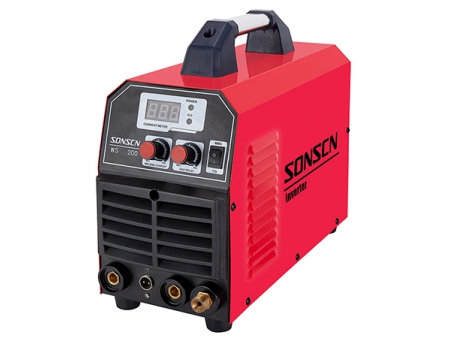

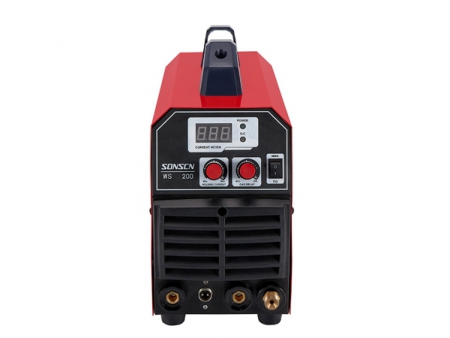

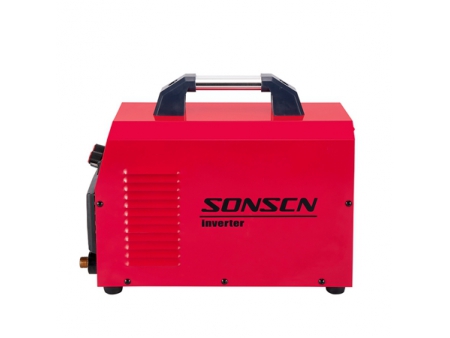

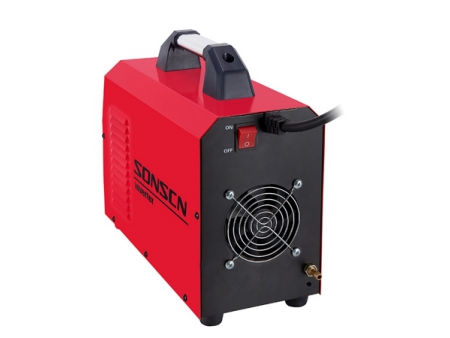

TIG/MMA Welding Machine
- Multi-process: excellent performance on TIG and MMA
- Advanced IGBT technology and PWM control: provides stable performance, reliability and high consistency.
- Portable & lightweight: this welder is easy to operate and carry.
- Hot start & anti-stick & built in arc force: provides quick and easy arc starting, stable welding arc, little splash, low noise.
- Premium welding performance: Suitable for rutile, acidic, alkaline, stainless steel electrode, and cellulose electrodes such as 6010, 6011, etc.
| Model | Power Voltage | No-load Voltage | Efficiency | Rated Input Power | Output Current Range | Duty Cycle | Electrode Diameter | Weight | Dimension |
| | 230V土10% 50/60hz(1ph) | 80V | 85% | 6.9KVA | 10-160A | 60% | 1.5-4.0mm(5/32") | 7.5kg | 39*17*28cm |
| | 230V土10% 50/60hz(1ph) | 80V | 85% | 9.6KVA | 10-200A | 60% | 1.5-5.0mm(3/16") | 8.0kg | 39*17*28cm |
- digital display

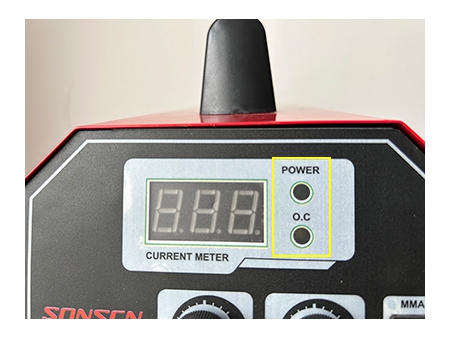

- working indicator light (green color)
protection indicator light (yellow color) - current adjustment knob

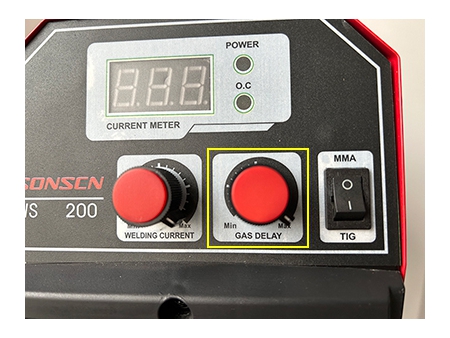

- gas adjustment knob

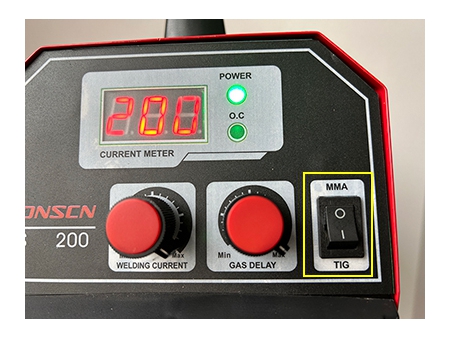

- welding mode selection: MMA or TIG

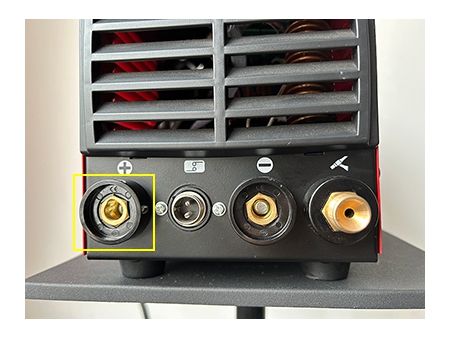

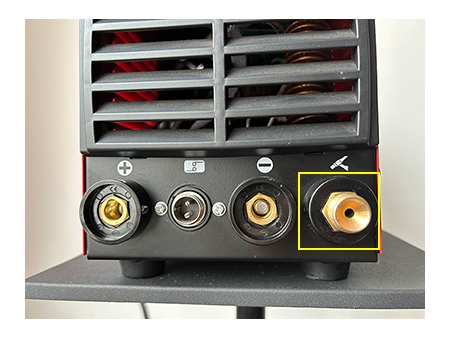

- “ ” electrode holder connector for MMA mode
“ ” earth clamp connector for TIG mode - Gas connector
- “—” earth clamp connector for MMA mode
- TIG torch connector
- Multi-process
Excellent performance on TIG and MMA
- Advanced IGBT technology and PWM control
Provides stable performance, reliability and high consistency.
- Portable & lightweight
This welder is easy to operate and carry.
- Hot start & anti-stick & built in arc force
Provides quick and easy arc starting, stable welding arc, little splash, low noise.
- Premium welding performance
Suitable for rutile, acidic, alkaline, stainless steel electrode, and cellulose electrodes such as 6010, 6011, etc.
- Safety protection
The welder is equipped with automatic compensation for overload, overheating protection, and over-current protection.
- Wide range of input voltages & automatic balancing during voltage fluctuations
- Weldable materials
Stainless steel, steel, titanium, nickel, magnesium and their alloys
- Welding for minor construction projects
- Welding for repairs and home DIY
- Stick welding for equipment repair
- Pipeline welding
- Stainless steel door and window welding processing
- Welding processing of kitchenware products
- Metal sheet welding processing
- Iron welding processing
- Adapter
We conduct comprehensive quality inspections throughout the production process, including tests for welding performance, circuit stability, safety, durability, aging, high and low temperatures, vibration, welding, and functionality. This ensures every welding machine is manufactured to the highest quality standards.
