SPC Flooring Profiling Line
Double-End Tenoner Line for Longitudinal and Crosswise Profiling

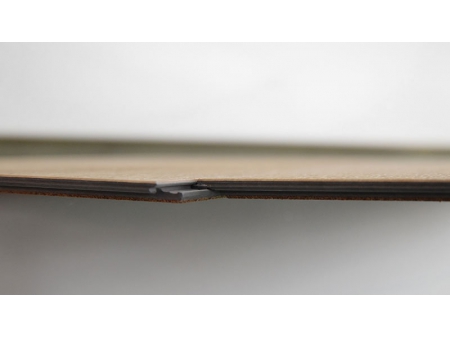

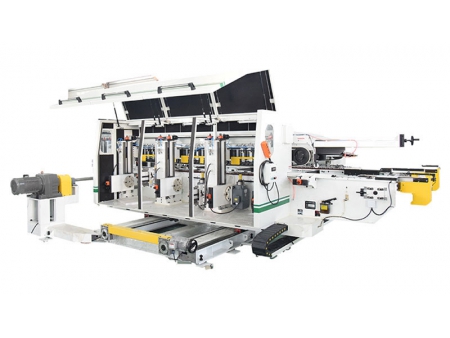

The SPC flooring profiling line is ideal for PVC/WPC/SPC materials. It features 6 6 spindles, 6 8 spindles, 8 8 spindles and other shaft configurations which make it suitable for the production tongue and groove flooring or interlocking flooring. When combined with the automated flooring machine, its high productivity, speed, volume and precision are suitable for huge production runs.
- LVT/WPC/SPC flooring
- Width range: 100-610 mm
- Length range: 450-1860 mm
- Thickness range: 3-10 mm
- Other sizes can be customized
-
AZUMI deploys T chains and ceramic guide rails with great exactness, quality, and extended service life. With no bearings in the entire chain, and the ceramic guide rails being wear-free, the maintenance costs are minimal. The unique V-groove structure ensures stability and precision of the device during fast performance.
-
AZUMI’s production line makes use of an integrated cylinder structure as the pneumatic upper pressing device, as well as a pressure switch which helps to regulate the pressing level evenly. This design has greater tolerance to processing materials which may have an inconsistent thickness.
-
AZUMI have opted to use an integrated base for our machinery, which not only lessens the requirements for ground conditions but also guarantees stability for the equipment during production.
-
The casting of the column is one solid piece, which includes the dovetail groove for stability of the device.
- Motor: 2.2 kW×4P/set, frequency converter variable speed
- Feeding speed: 20~90 m/min
- Feeding belt: endless belt
- Motor: 1.5kW×4P / set, variable frequency inverter drive
- Feeding speed: 20~90 m/min
- Feeding belt: endless belt
- Stock bin: 1 set of rubber roller pinch roller
- Model: strong/H30C-DV10S
- Base: customized
- Linear guide: strong Silver
- Chain: strong N30 customized
- Guide rail: strong ceramic guide rail customization
- Compression belt: strong V-belt
- Pressure roller: strong stainless steel
- Frequency converter: Toshiba
- Vertical spindle: strong casting
- Motor: customized
- Motor tray: strong casting
- Spindle dust cover: strong welded parts
- Guide rail dust removal device: strong (left, right, entrance and exit)
- Mobile frame: strong on the left side and installed on the right side; linear guide, digital display; 1.1 kW×4P / set
- Feeding motor 7.5 kW×4P, frequency conversion speed
- Station longitudinal milling spindle
- The first, second and third vertical axis (left & right): 6.5 kW×2P (one on each side), directly installed on the spindle and rotates in the opposite direction;
- Revolutions: 3000-7200 rpm, variable frequency inverter drive; with dust hood;
- Tool used: Ø250×Ø40×T (must be purchased separately), hydraulic bushing can be installed, with spindle tilting mechanism;
- The 4th scraper shaft (left & right): chamfering scraper assembly (one on each side), the vertical and horizontal angle adjustment can be fine-tuned;
- The 5th tilt axis (left & right): 6.5 kW×2P (one on each side), the tool is directly mounted on the motor shaft
- Revolutions: 3000-7200 rpm, variable frequency inverter drive; with dust hood;
- Tool used: Ø250×Ø40×T (must be purchased separately), hydraulic bush optional, with spindle tilting mechanism, the angle is recorded in the profile drawing;
- The 6th tilt axis (left & right): 6.5 kW×2P (one on each side), the tool is directly mounted on the motor shaft and rotates in the opposite direction;
- Revolutions: 3000-7200 rpm, variable frequency inverter drive; with dust hood;
- Tool used: Ø250×Ø40×T (must be purchased separately), hydraulic bushing optional, with spindle tilting mechanism;
- Model: IST3A08B/N75B-DV10S
- Base: customized
- Linear guide: Taiwan Silver
- Chain: YASUDA N75 chain block, 2 rows, with flat gasket
- Guide rail: custom made by Yasuda synthetic resin guide rail
- Compression belt: customized V-belt
- Pressure roller: customized stainless steel
- Frequency converter: Toshiba
- Knife shaft upright: customized casting
- Motor: customized
- Motor tray: customized casting
- Knife shaft dust cover: customized welded parts
- Guide rail dust removal device: 4 (left, right, entrance and exit)
- Moving frame: fixed on the left side and installed on the right side; linear guide, digital display; 1.1 kW×4P / set
- Feeding motor 7.5 kW×4P, variable frequency inverter drive, installed on the left side;
- Station Transverse Milling Spindle
- The first, second and third vertical axis (left & right): 4.4 kW×2P (one on each side), directly installed on the spindle and rotates in the opposite direction;
- Revolutions: 3000-7200 rpm, variable frequency inverter drive; with dust hood;
- Tool used: Ø250×Ø40×T (must be purchased separately), hydraulic bushing can be installed, with spindle tilting mechanism;
- The 4th scraper shaft (left & right): chamfering scraper assembly (one on each side), the vertical and horizontal angle adjustment can be fine-tuned;
- The 5th tilt axis (left & right): 4.4 kW×2P (one on each side), the tool is directly mounted on the motor shaft
- Revolutions: 3000-7200 rpm, variable frequency inverter drive; with dust hood;
- Tool used: Ø250×Ø40×T (must be purchased separately), hydraulic bush optional, with spindle tilting mechanism, the angle is recorded in the profile drawing;
- The 6th tilt axis (left & right): 4.4 kW×2P (one on each side), the tool is directly mounted on the motor shaft and rotates in the opposite direction;
- Revolutions: 3000-7200 rpm, variable frequency inverter drive; with dust hood;
- Tool used: Ø250×Ø40×T (must be purchased separately), hydraulic bushing optional, with spindle tilting mechanism;
