Semi-Automatic Liquid Filling Machine Manufacturer

Semi-Automatic Liquid Filling Machine

Request a Quote

View All: http://filling-packaging.com/1-1-2-semi-automatic-liquid-filling-machine.html

Semi-auto fillers for filling containers with various liquids

Semi-automatic filling machines, including tabletop liquid fillers, magnetic pump liquid fillers, stand-up pouch filling machines, and single drum filling machines (with weighing scale), are widely used in various industries such as food, pharmaceuticals, and chemicals. These machines offer high cost-performance and can be tailored to meet the specific needs of customers. Customization options are available to suit different requirements.

Tabletop Type
Magnetic Pump Type
Stand-Up Pouch Type
Single Drum Type

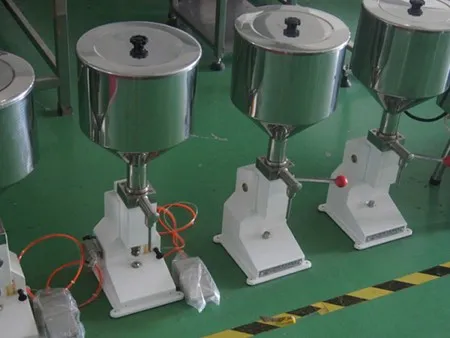

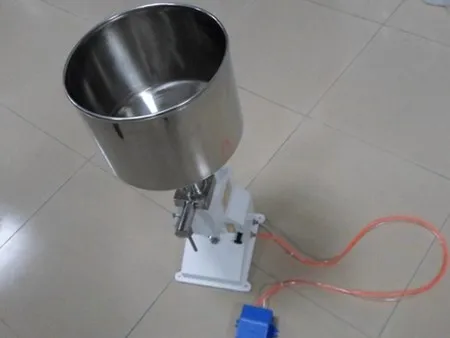

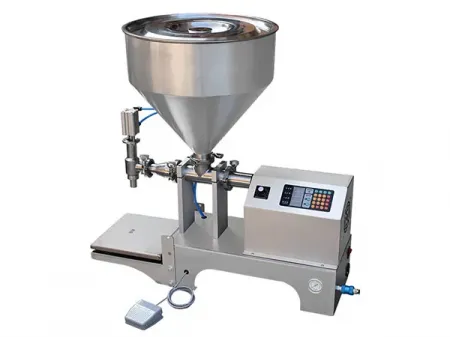

Semi-Automatic Tabletop Liquid Filler

Filling Range: 5-50g
Accuracy: ±0.2-1ml
Speed: 20-60 containers per minute
Working Pressure: 0.4-0.6MPa
Hopper Capacity: 10L
Machine Weight: 28kg (packaged)
Machine Dimensions (L×W×H): 340×340×780mm
Fill Heads: single head or double heads (customizable)
Option: supercharger, mixer

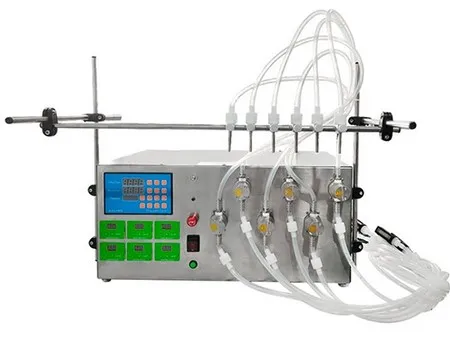

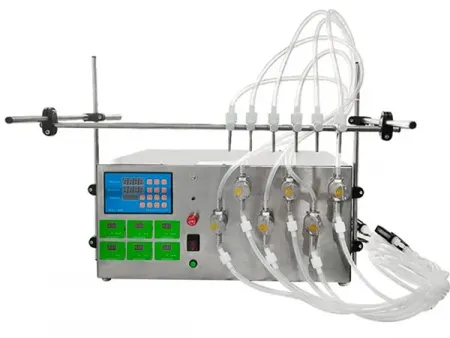

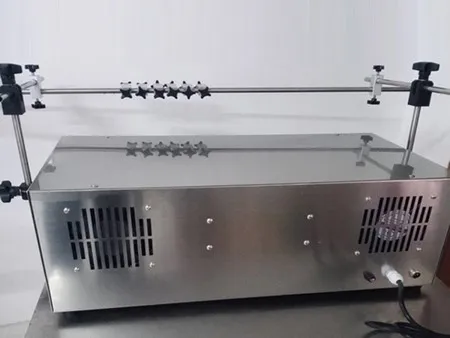

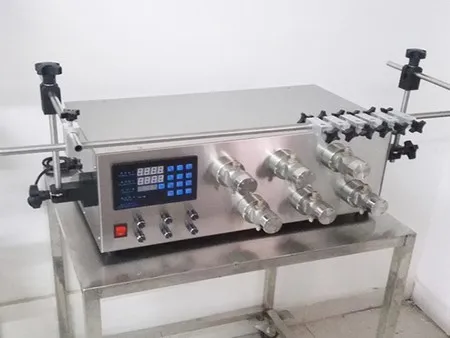

Semi-Automatic Magnetic Pump Liquid Filler

Machine Dimensions (L×W×H): 350×320×200mm
Voltage: 220V 80W
Accuracy: ±1%
Speed: 20-40 containers per minute
Filling Volume: 20-1000ml
Fill Heads: single head, double heads or six heads (customizable)

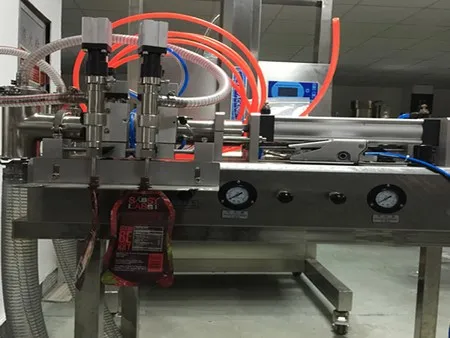

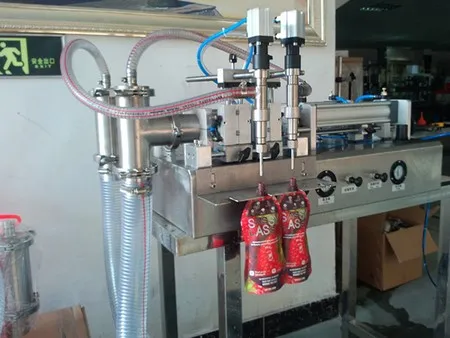

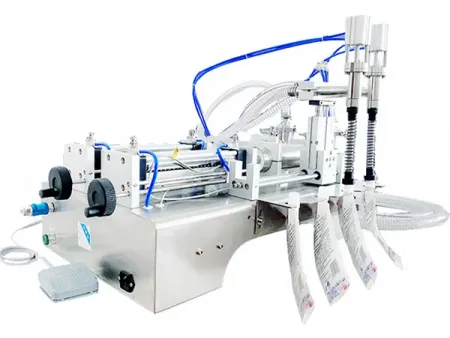

Semi-Automatic Stand-Up Pouch Filling Machine

Power: 0.4kW
Machine Dimensions (L×W×H): 1400×400×340mm
Filling Volume: 200-2500ml
Speed: 40-60 containers per minute
Accuracy: ≤±0.5%
Fill Heads: single head, double heads or multiple heads (customizable)

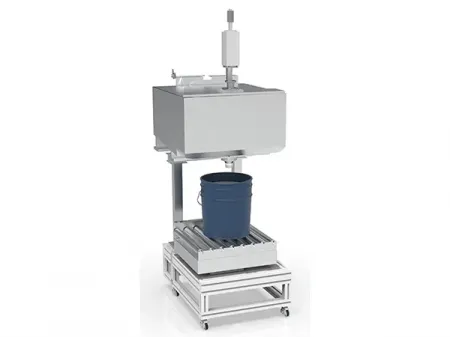

Semi-Automatic Single Drum Filling Machine
(with Weighing Scale)

Machine Dimensions (L×W×H): 1500×1300×1800mm
Speed: 4-13 drums per minute
Applicable drum: 4-40L wide-mouth drums
Accuracy: ±50g
Power Supply: 220V/50Hz, 0.5kW
Air Pressure: 0.55-0.65MPa
Fill Heads: single head, double heads or multiple heads (customizable)

Customization

Customization options include magnetic pump fillers, piston fillers, flow meters, and gravity fillers.

The presented machines process fluids through a hopper with a mixing agitator to prevent clumping. They can easily fill round, rectangular, and square containers with capacities ranging from 0.005 to 40 liters. These machines are commonly used in the food, dairy, and cosmetics industries.
