High Frequency Fretting Wear Testing Machine
Reciprocating tribometer for testing materials, lubricant, grease, and coatings
Applications
Designed for evaluating the performance of thin films, coatings, surface treatments, bulk materials, lubricating oils, and greases, this testing machine is essential for understanding how these materials behave under stress and repetitive motion.

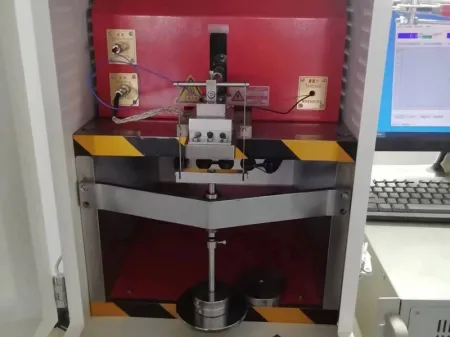

Fretting wear can have a significant impact on the durability of materials exposed to repetitive motion, particularly in demanding applications like automotive components or aerospace parts. This reciprocating tribometer is designed for evaluating the mechanical and tribological properties of various materials, including lubricants, greases, and coatings. Using a high-frequency exciter, the system generates small, rapid oscillations with a reciprocating frequency range of 10–50 Hz. The upper sample (usually a ball) is pressed against the lower sample (a disc) by an external weight, while the exciter drives the upper sample in high-frequency motion. Whether it’s testing surface coatings, lubricants, or base materials, this testing system is adaptable to the specific needs of industries such as petrochemicals, energy, aerospace, and automotive manufacturing.
Technical Specifications
| Reciprocating frequency | 10-50HZ |
| Limit frequency | 200Hz |
| Reciprocating stroke | 10μm-2mm |
| Stroke programmable resolution | ±0.1μm |
| Max. test force | 150N (±0.5%F.S) |
| Loading method | Loading of weights/automatic loading (optional) |
| Relative accuracy of test force | ±0.5% |
| Friction force measurement range | 0-200N |
| Relative accuracy of friction force | ±1N |
| Test temperature | Room to 120℃ heating module |
| Temperature measurement method | Thermocouple |
| Temperature measurement accuracy | ±2℃ |
| Wear scar monitoring | HD electronic observation system for the display of wear mark and size (optional) |
Features
- Built to assess mechanical and tribological properties, this tribometer relies on high-frequency micro-motions, providing precise and reliable performance for testing coatings, films, and lubricants
- Offers flexible control with an adjustable reciprocating stroke mechanism, high-precision friction force measurements, and multiple testing formats to accommodate different needs
- Integrated with a high-temperature heating system and a temperature monitoring alarm, ensuring safe, stable operation for extended testing sessions
