NEMA Premium Efficiency Three-Phase Asynchronous Motor

NEMA Premium Efficiency Three-Phase Asynchronous Motor
NEMA Premium Efficiency Three-Phase Asynchronous Motor
Request a Quote
View All: http://semc-motors.com/1-3-4-three-phase-asynchronous-motor.html
AC electric motor compliant with NEMA Premium standard

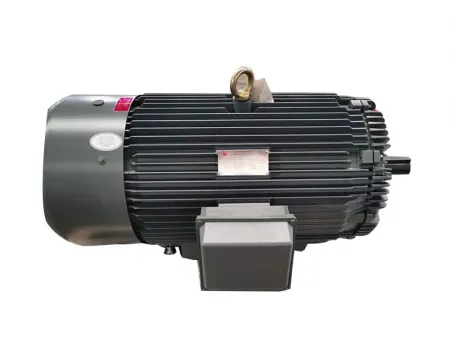

Our NEMA premium efficiency three-phase asynchronous motors are AC electric motors meeting the NEMA Premium standard. They feature single speed, totally enclosed fan cooling, continuous operation, and a low-voltage squirrel cage. The entire series of our motors uses cast iron housings and meets the NEMA PREMIUM efficiency standards.

  • Frame: 143T-587T
  • Rated power: 1-200HP
  • Number of poles: 2/4/6 poles
  • Service factor: 1.25
  • Rated voltage: 230V/460V/575V
  • Rated frequency: 60Hz
  • Protection degree: IP54/IP55, TEFC
  • Insulation class: class F
  • Frequency range: 143T-587T 10:1 CT, 20:1 VT
  • CSA certification: Class I, Div. 2, Groups A, B, C & D-T3C (140-320Fr.)/-T3A(360-500Fr.)
