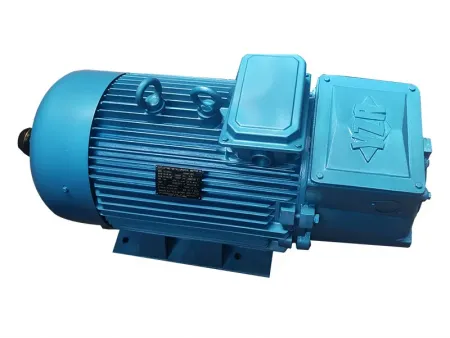

Three-Phase Asynchronous Crane-Metallurgical Motor

Three-Phase Asynchronous Crane-Metallurgical Motor
Three-Phase Asynchronous Crane-Metallurgical Motor
Request a Quote
YZR Series
AC electric motor for crane and metallurgical applications

Our three-phase asynchronous crane-metallurgical motors (YZR series) are AC electric motors designed for driving various cranes and metallurgical auxiliary equipment. They feature high overload capacity and mechanical strength, ideal for short-term or intermittent operation, frequent starts/stops, braking, and equipment with significant vibration and impact.

  • Frame sizes: 80-550mm
  • Rated power: 1.1-1000kW
  • Rated voltage: 230V/380V/460V/690V
  • Rated frequency: 0-100Hz
  • Number of poles: 2/4/6/8/10 poles
  • Protection degree: IP55
  • Insulation class: class H
  • Cooling method: air cooling
  • Duty cycle: S3
  • Mounting type: vertical or horizontal
  • Shaft: solid shaft
