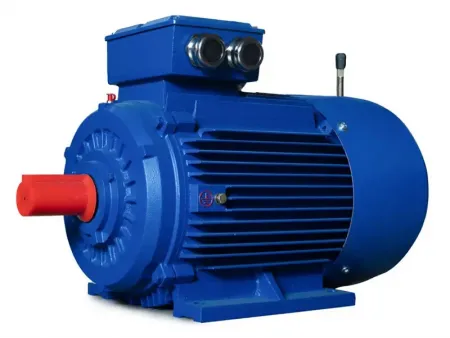

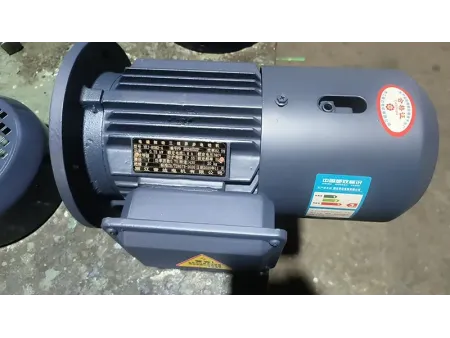

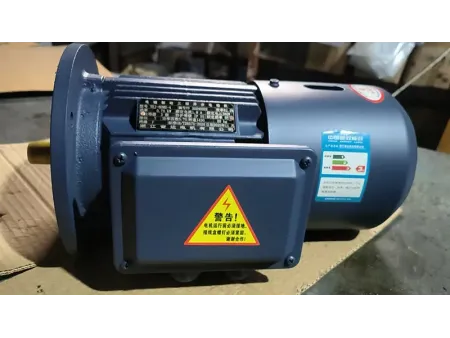

TEFC Three-Phase Asynchronous Motor
Request a Quote
YEJ Series
AC electric motor with totally enclosed fan-cooled (TEFC) enclosure
Our TEFC three-phase asynchronous motors (YEJ series) feature a totally enclosed fan-cooled enclosure and squirrel cage design, with an additional DC electromagnetic brake. These motors are ideal for machinery requiring rapid braking, precise positioning, and frequent start-stop operations, such as electric valves, rubber processing machines, metalworking tools, packaging machinery, woodworking equipment, food processing machines, chemical machinery, textile machinery, construction machinery, and gear reducers. They offer reliable braking, adjustable torque, and easy operation.
- Center height: 80-250mm
- Rated power: 0.55-55kW
- Rated voltage: 380V (customizable)
- Frequency: 50Hz (customizable)
- Protection degree: IP44/IP54
- Temperature class: 155(F)
- Cooling method: IC411
Specifications
| Model | Rated Power (kW) | Full Load | Locked-rotor Torque / Rated Torque (Tst/TN) | Locked-rotor Current / Rated Current (Ist/IN) | Maximum Torque / Rated Torque (Tmax / TN) | |||
| Rated Current (A) | Speed (RPM) | Efficiency (%) | Power Factor | |||||
| Synchronous Speed (3000 RPM) | ||||||||
| 0.75 | 1.8 | 2825 | 75.0 | 0.84 | 2.2 | 6.5 | 2.3 | |
| 1.1 | 2.5 | 2825 | 77.0 | 0.86 | 2.2 | 7.0 | 2.3 | |
| 1.5 | 3.4 | 2840 | 78.0 | 0.85 | 2.2 | 7.0 | 2.3 | |
| 2.2 | 4.8 | 2840 | 80.5 | 0.86 | 2.2 | 7.0 | 2.3 | |
| 3 | 6.4 | 2880 | 82.0 | 0.87 | 2.2 | 7.0 | 2.3 | |
| 4 | 8.2 | 2890 | 85.5 | 0.87 | 2.2 | 7.0 | 2.3 | |
| 5.5 | 11.1 | 2900 | 85.5 | 0.88 | 2.0 | 7.0 | 2.3 | |
| 7.5 | 15.0 | 2900 | 86.0 | 0.88 | 2.0 | 7.0 | 2.3 | |
| 11 | 21.8 | 2930 | 87.2 | 0.88 | 2.0 | 7.0 | 2.3 | |
| 15 | 29.4 | 2930 | 88.2 | 0.88 | 2.0 | 7.0 | 2.2 | |
| 18.5 | 35.5 | 2930 | 89.0 | 0.89 | 2.0 | 7.0 | 2.2 | |
| 22 | 42.2 | 2940 | 89.0 | 0.89 | 2.0 | 7.0 | 2.2 | |
| 30 | 56.9 | 2950 | 90.0 | 0.89 | 2.0 | 7.0 | 2.2 | |
| 37 | 69.8 | 2950 | 90.5 | 0.89 | 2.0 | 7.0 | 2.2 | |
| 45 | 84.0 | 2970 | 91.5 | 0.89 | 2.0 | 7.0 | 2.2 | |
| Synchronous Speed (1500 RPM) | ||||||||
| 0.55 | 1.5 | 1390 | 73.0 | 0.76 | 2.4 | 6.0 | 2.3 | |
| 0.75 | 2.0 | 1390 | 74.5 | 0.76 | 2.3 | 6.0 | 2.3 | |
| 1.1 | 2.7 | 1400 | 78.0 | 0.78 | 2.3 | 6.5 | 2.3 | |
| 1.5 | 3.7 | 1400 | 79.0 | 0.79 | 2.3 | 6.5 | 2.3 | |
| 2.2 | 5.0 | 1420 | 81.0 | 0.82 | 2.2 | 7.0 | 2.3 | |
| 3 | 6.8 | 1420 | 82.5 | 0.81 | 2.2 | 7.0 | 2.3 | |
| 4 | 8.8 | 1440 | 84.5 | 0.82 | 2.2 | 7.0 | 2.3 | |
| 5.5 | 11.6 | 1440 | 85.5 | 0.84 | 2.2 | 7.0 | 2.3 | |
| 7.5 | 15.4 | 1440 | 87.0 | 0.85 | 2.2 | 7.0 | 2.3 | |
| 11 | 22.6 | 1460 | 88.0 | 0.84 | 2.2 | 7.0 | 2.3 | |
| Synchronous Speed (1500 RPM) | ||||||||
| 15 | 30.0 | 1460 | 88.5 | 0.85 | 2.2 | 7.0 | 2.2 | |
| 18.5 | 35.9 | 1470 | 91.0 | 0.86 | 2.0 | 7.0 | 2.2 | |
| 22 | 42.5 | 1470 | 91.5 | 0.86 | 2.0 | 7.0 | 2.2 | |
| 30 | 56.8 | 1470 | 92.2 | 0.87 | 2.0 | 7.0 | 2.2 | |
| 37 | 70.4 | 1480 | 91.8 | 0.87 | 1.9 | 7.0 | 2.2 | |
| 45 | 84.2 | 1480 | 92.3 | 0.88 | 1.9 | 7.0 | 2.2 | |
