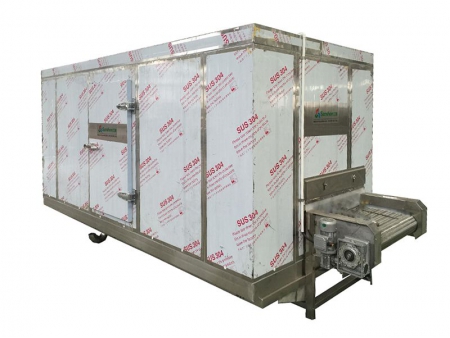

The mesh belt tunnel freezer is used to achieve a quick freeze process for granular and small pieces of food. A larger mesh belt tunnel freezer is also applicable to individual quick freezing of prepared food, such as an entire chicken or fish. This freezer is also capable of being connected to the front or back of other customer processing lines.

Parameters
Items Parameters
Type SWD2-700
Dimensions 16000×3200×2660mm
Frozen products Dumplings
Capacity 700KG/h
Infeed temperature 25℃
Outfeed temperature -18℃
Energy consumption 100KW
Refrigerant R22
Freezing time 7.4-74min
Infeed conveyor length 1250mm
Belt width 2000mm
Installed power 20KW

Notes: These parameters are subject to change based on different products and processes.

Recommended Applications
  • Poultry Products
  • Aquatic Products
Features
  • The mesh belt tunnel freezer is equipped with an efficient and hygienic evaporator that uses the latest liquid supply method to ensure the heat exchange efficiency is 20% higher than traditional processes.

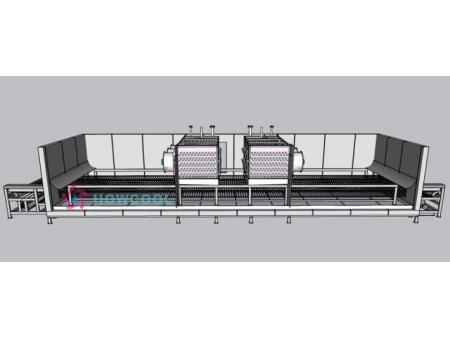

  • The mesh belt features a circular air duct with a vertical symmetry in order to enhance the heat exchange effect.
  • The mesh belt tunnel freezer uses an imported cold storage insulated panel production line for the production of panels. This production line is energy efficient and features a high quality.
  • The mesh belt tunnel freezer is equipped with an intelligent central control system, automatic detection device and warning lights, which makes it easy for users to operate and maintain.
Custom Range
  • We can design and produce the mesh belt tunnel freezer according to different frozen food conditions and customer requests.
  • The production capacity ranges between 200kg/h to 3000kg/h.
  • The conveyor belt width ranges between 1500-3500mm.
  • We make customized infeed and outfeed conveyor upon customers' requirements.
  • Fully welded enclosure structure is optional.
  • The CIP automatic cleaning system can be chosen to efficiently clean the interior of the freezer, and reduce downtime.
