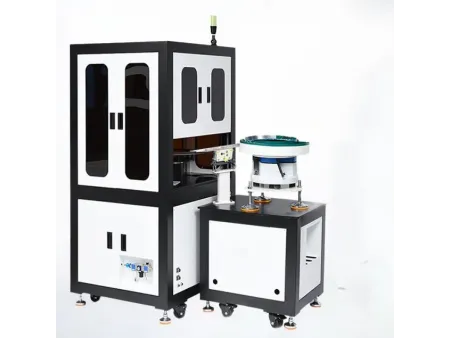

Automatic Pin/Shaft/Roller Optical Sorting Machine
- Types:
Optical sorting machine with U shaped slot
- Suited for:
Pins, shafts, rollers and special components
- Inspection Accuracy:
±0.01mm

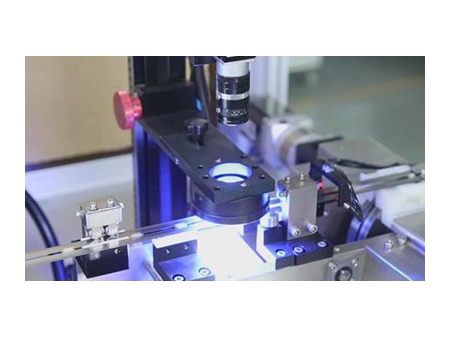

This machine is equipped with a vertical top view CCD camera for inspecting the multi-segment height, outer diameter, and total length of the product. It can be outfitted with additional CCD cameras for the inspection of leaks and other factors.
- CCD1, head-up
- head-up
- Model: RK-1520
- Head Outer Diameter (mm): 2-10
- Total Height (mm): 2-30
- Inspection Accuracy: ±0.01mm
- Air Pressure (Kg/cm²): 5
- Host Computer: Industrial PC
- Digital Camera: Industrial CCD
- Net Weight (KGS): 650
- Dimension (L*W*H) (mm): 1350*1100*1800
Customized service can be provided according to the detect demand.
- This machine is suitable for the inspection of products that cannot stand on the on the glass platform.
- Both products that can and cannot stand can be inspected by this machine.
- The inspection and sorting speed depends on the feeding system, up to 300-1000 pieces per minute.
- Parts can be quickly and easily changed.
-
The patented U-shaped groove (Patent No ZL201310144557.8)

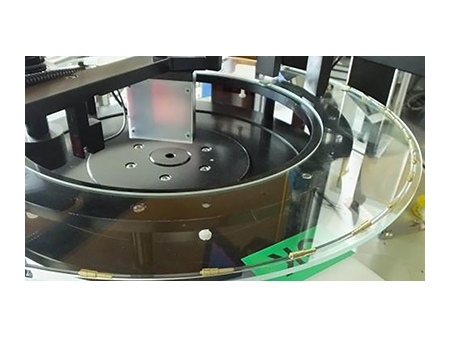

A patented U-shaped groove is added to the outer edge of the glass plate so that products can lay in the groove for inspection. Both products which can and cannot stand can be inspected by this machine.
-

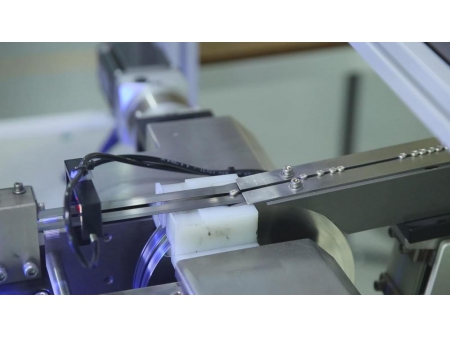

Special track

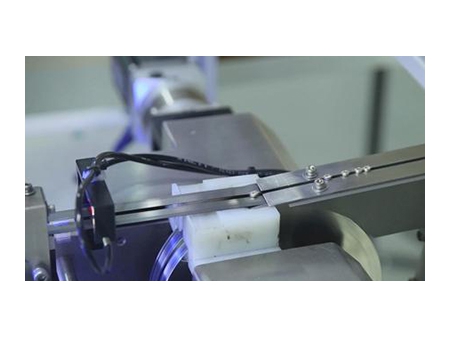

The special track ensures products are correctly conveyed to the U-shaped groove on the glass platform. It is designed for products including shafts, guide pins, and pins.
-

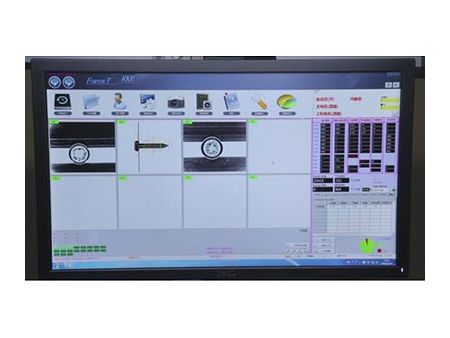

Multiple order supporting
The pre-set inspection parameters can be applied to new orders as needed. The inspection parameters of various products can be loaded quickly and conveniently.

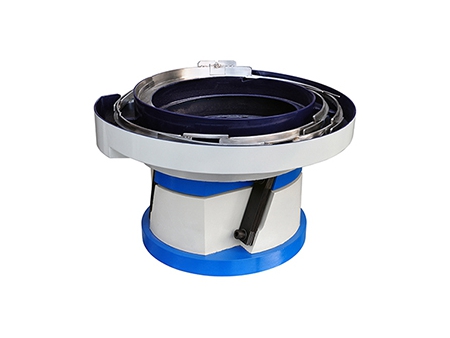

- Vibration bowl

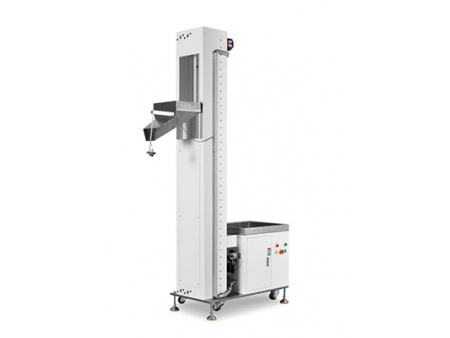

- Feeding elevator

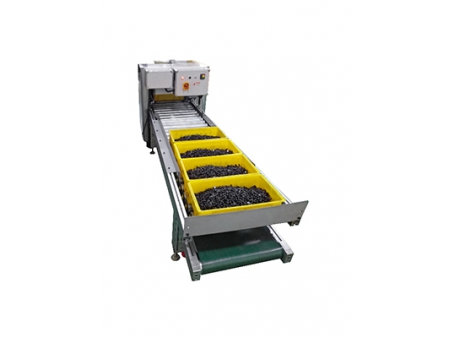

- Automated conveyor system
