Request a Quote

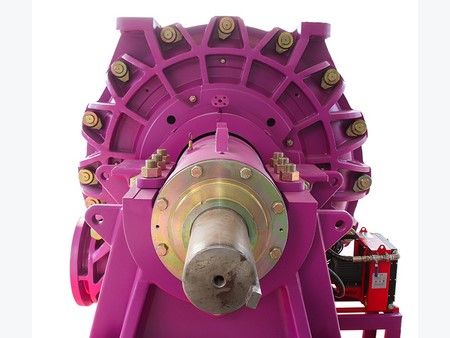

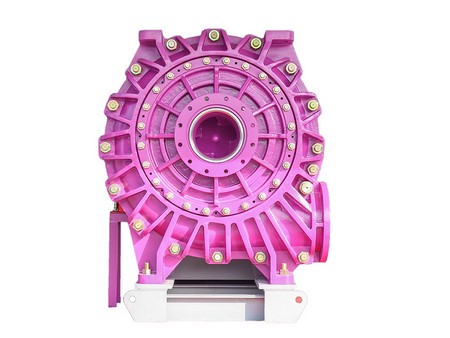

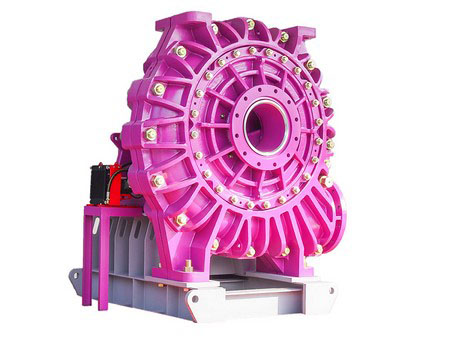

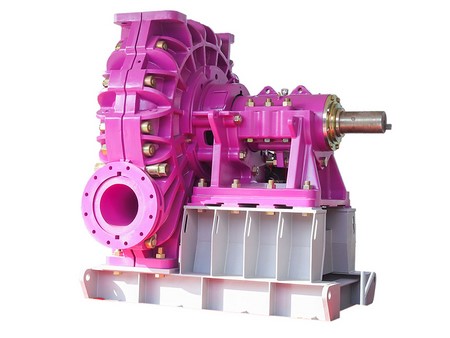

Horizontal pump for handling slurries containing abrasive solids

HCP high pressure metal lined slurry pump is used for handling slurries containing abrasive solids and highly concentrated slurries. Specifically designed for series operation, it is suitable for high-pressure conditions for transporting fine ore or tailings.

  • Capacity: 93.6-2455m³/h
  • Head: 21.7-63m
  • Speed: 300-1600r/min
  • Power: 22-900kW

Applications
  • Iron ore dressing plant
  • Copper dressing plant
  • Gold ore dressing plant
  • Molybdenum dressing plant
  • Potassium fertilizer plant
  • Other dressing plants
  • Aluminum oxide industry
  • Coal washing plant
  • Power plant
  • Building materials industry
  • Chemical industry
Specifications

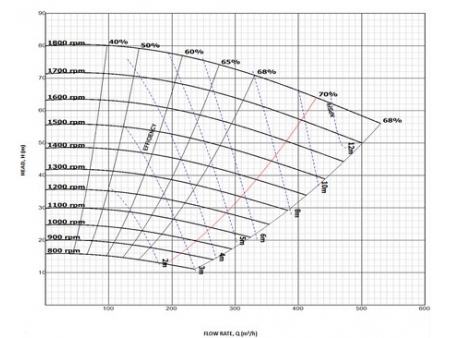

6x4EE-HCP

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
225 kW 93.6-385.2 m³/h 21.7-63 m 1050-1600 r/min 65% 5-8 m 365 mm 22-115 kW
Pump
  • Suction: 152mm
  • Discharge: 102mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 365mm
  • Material: metal
Frame: Type EE (Max. power 225 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
425 kW 126-720 m³/h 10-58 m 500-1100 r/min 72% 2-9 m 510 mm 11-115 kW
Pump
  • Suction: 203mm
  • Discharge: 152mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 510mm
  • Material: metal
Frame: Type FF (Max. power 425 kW)
Seal: gland seal

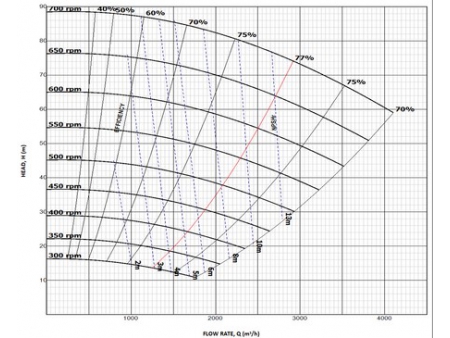

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
900 kW 504-2455 m³/h 13.5-60 m 300-585 r/min 77% 3-10 m 965 mm -
Pump
  • Suction: 356mm
  • Discharge: 305mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 965mm
  • Material: metal
Frame: Type GP (Max. power 900 kW)
Seal: gland seal
Features
  • With its high-pressure performance, our slurry pump excels across various industries such as mining, construction, and industrial processes involving abrasive and corrosive slurries. Its exceptional performance and durability establish it as the preferred solution for efficient and reliable pumping.
  • The high-pressure slurry pump from Hongchang boasts a robust structure, advanced technology, optimal flow, and minimal wear. Its specially designed impeller and casing work seamlessly, even when handling high-density slurries over extended distances and at high pressures, resulting in impressive outcomes.
  • Both maintenance and operation are straightforward; replaceable wearing parts and accessible interfaces simplify maintenance and troubleshooting, minimizing downtime while maximizing efficiency.
