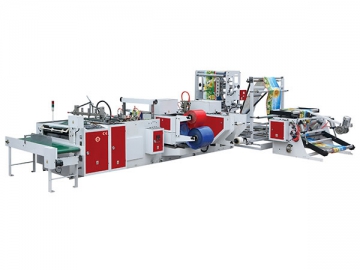

CW-800SDP High Speed Handle Bag Making Machine

<span class=new-btn>CW-800SDP High Speed Handle Bag Making Machine</span>
<span class=new-btn>CW-800SDP High Speed Handle Bag Making Machine</span>
<span class=new-btn>CW-800SDP High Speed Handle Bag Making Machine</span>
<span class=new-btn>CW-800SDP High Speed Handle Bag Making Machine</span>
<span class=new-btn>CW-800SDP High Speed Handle Bag Making Machine</span>
<span class=new-btn>CW-800SDP High Speed Handle Bag Making Machine</span>
<span class=new-btn>CW-800SDP High Speed Handle Bag Making Machine</span>
<span class=new-btn>CW-800SDP High Speed Handle Bag Making Machine</span>
<span class=new-btn>CW-800SDP High Speed Handle Bag Making Machine</span>
Request a Quote

Brief introduction
This machine is used for making soft loop handle bag, patch handle bag and D-cut handle bag at a high-speed, stable working performance.

Features of the handle bag making machine
1. The design of soft loop handle and patch handle in the same side, fast exchange the type of bag
2. Soft loop handle device with 3 pcs servo motor drive (Patent)
3. The rotary device of patch handle is driven by servo motor. (Patent)
4. Top folding continuous sealing design, the sealing length is not limited (Patent)
5. The new design of bag stack and speed down conveyor system. (Patent)

Optional equipment
1. Bottom sealing knife device
2. Double lines sealing knife device

Bag samples :

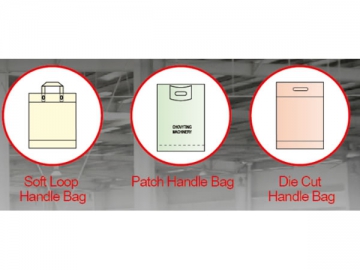

  • Soft loop handle bag

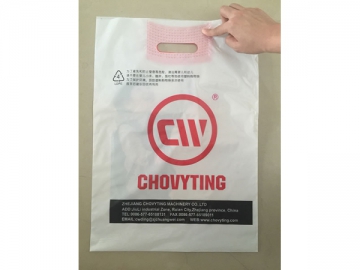

  • Patch handle bag

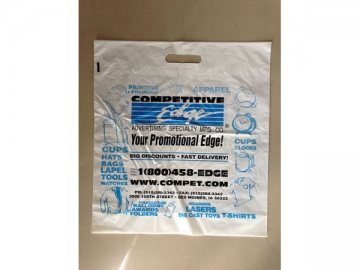

  • Die cut handle bag

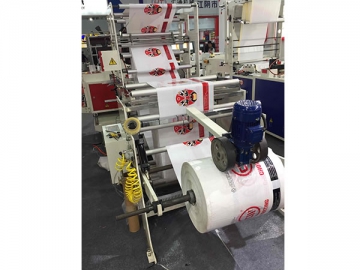

  • Unwinder

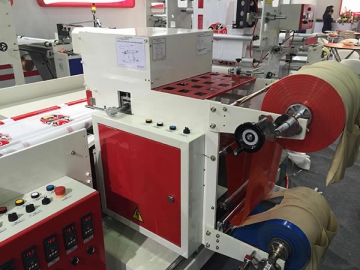

  • Loop handle sealing device

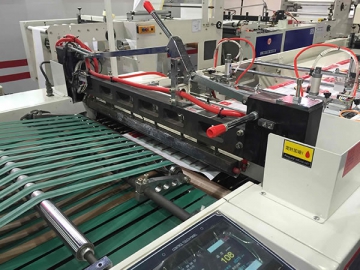

  • Sealing knife

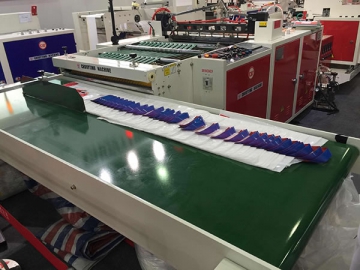

  • Auto conveyor table
Technical parameter of the handle bag making machine
Type CW-800SDP
Length of bag making (height of bag) 250-750mm
Width of bag making 250-600mm
Speed of bag making soft loop handle bag 100pcs/min
patch handle bag 100pcs/min
die cut bag 120pcs/min
Top folding 50-75mm
Bottom gusset 20-60mm
Total power 18KW
Machine dimension 10200X2200X1950mm
Machine weight 3600kg
Air compressor 6HP
