Request a Quote

By offering the choice between of our well known TP-H series machines classical thick-turret style, Accurl proudly offers a full range of punching solutions both in performance and price range.

Features

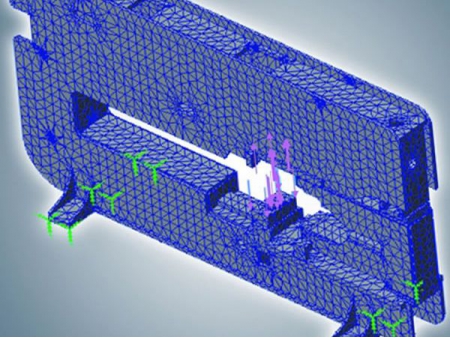

  • Accurl Turret Punch, presses are produced as a closed type rigid steel constructionsin to a robust structure to allow minimum deflection during operation.
  • Operating System is CNC and hydraulic.
  • Accurl Turret Punch 4 axes controlling; X, Y axes for movement of sheet, T axes:Turret rotation, C axis: Auto-index station rotation for indexing tools.

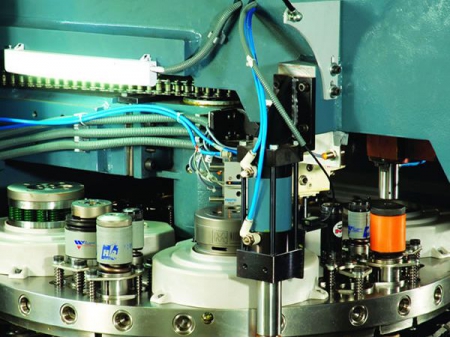

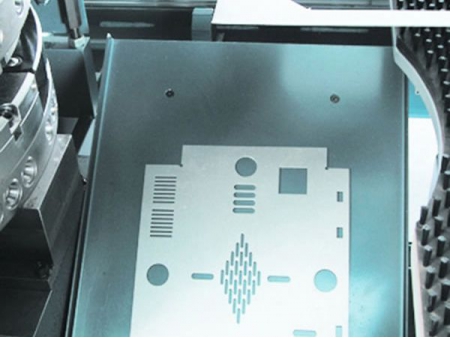

  • The 32 station Turret as to allow punching complicated, multi anddifferent size holes parts in a single operation.
  • Auto –index stations can punch to required angle for various angle shape parts with CNC controller.
  • Precision forming and roller tools can be use on the Turret, therefore TP Turret punch provides
  • Complete solutions with effective costs.
Design to Production

Metalix CNCCAD CAD/CAM software offersan integrated system cover to the user whichincludes the complete cycle of CNC operation.

Punch Technology
  • Special Tool drawing
  • Auto-index functions
  • Auto clamp positioning
  • Automatic Sheet Repositioning
  • CNCCAD provides automatic or manualnesting for effective use of sheet metal
  • Roller Tools usable
  • Common cut function
  • Ribbon cutting for splitting sheet
  • Auto index reducing cycle time functionswith rotations to nearest position
  • Tools punch sequence selection
Standard Equipments
  • 4 Axes CNC System

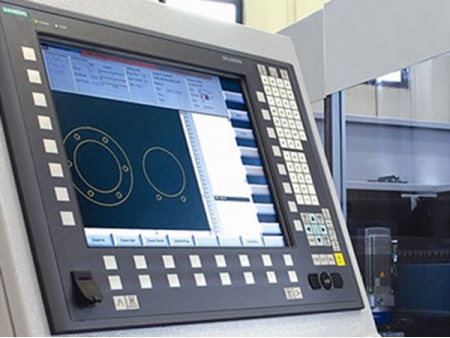

  • Siemens 808D CNC unit, servo motors and drivers
  • Rexroth and HL hydraulic unit
  • 32 Stations Turret10 A Stations16 B Stations2 C Stations4 D Station (2 of them Auto Index)
  • Repositioning of Clamps
  • Automatic reference
  • CAD/CAM program
  • Automatic Clamping
Optional Equipments
  • Tool Adaptors
  • Extra D index station
  • Thin &Thick Turret Tools
Specifications
Item / Model
TP-MAX125A
TP-MAX125B
TP-MAX125C
TP-MAX125D
TP-MAX125E
Nominal Force kN 300 300 300 300 500
Max. Sheet Thickness mm 6.35 6.35 6.35 6.35 6.35
Max. Tool Size mm Φ88.9 Φ88.9 Φ88.9 Φ88.9 Φ88.9
Max. Sheet Size (One-time repositioning) mm 1250×2500 1250×4000 1250×5000 1500×5000 1250×5000
Punching Accuracy mm ±0.1 ±0.1 ±0.1 ±0.1 ±0.1
Max. Hit Rate h.p.m 600/900 600/900 600/900 600/900 300
Number of Stations set 32 32 32 32 32
Number of Indexing Tool set 2 2 2 2 2
Quantity of Controlling Axes pcs 4(X, Y, T, C) 4(X, Y, T, C) 4(X, Y, T, C) 4(X, Y, T, C) 4(X, Y, T, C)
Machine Weight kg 14000 15000 16000 17000 21000
Overall Dimensions mm 4965×2800 4965×4400 4965×5200 5210×5200 4965×5200
×2110 ×2110 ×2110 ×2110 ×2110
