HRB-3F

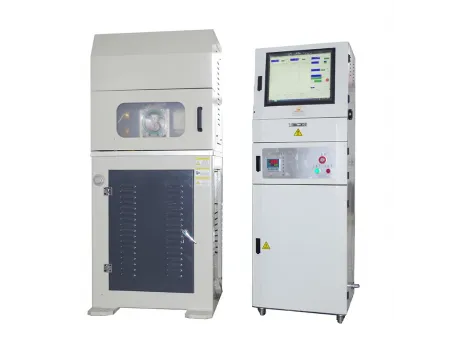

Block-on-ring test machine for evaluating the friction and wear characteristics of metals, plastics, coatings and lubricants

Standards
Compliant with ASTM D2782, ASTM D2509, IP 240, and IP 326 standards for friction and wear testing.

Applications
Widely used in industries such as petrochemicals, mechanical engineering, energy, transportation, metallurgy, aerospace, automotive manufacturing, and lubrication engineering. It is also a valuable tool in academic and research institutions for advanced studies on material performance and lubricant evaluation.

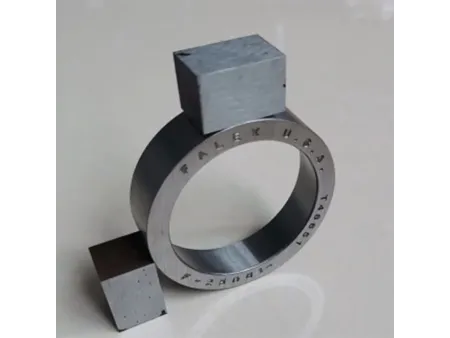

The block-on-ring testing machine is designed to evaluate the friction and wear behavior of metals, plastics, coatings, and lubricants under controlled conditions. By using a rotating standard ring and a fixed rectangular block, this friction and wear machine simulates real-world friction scenarios to assess material performance. During testing, the friction and wear testing system measures the width of wear scars on the block under varying loads, while also tracking the friction forces and friction coefficient between the test materials. It can operate under oil-immersed conditions to evaluate lubricant performance and is especially useful for studying the wear resistance of high-performance automotive gear oils.

Technical Specifications

Max. test force 3000N (stepless adjustable)
Relative accuracy: ±2N (below 100N), ±0.5% (above 100N)
Loading method Loading method: AC servo segmented loading (constant loading)
Loading rate: 300N/min (stepless adjustable)
Loading of small force: displacement loading (constant loading)
Friction force/torque Max. friction force (standard ring): 300N
Relative accuracy: ±1% Force sensor: 100N
Friction force measurement Force scanning frenquency: ≮300Hz
Full-time force saving efficiency: ≮10times/s
Rotation speed Speed adjustment: 5-3000r/min (stepless adjustable)
Spindle speed accuracy: ±2r/min
Test method Block-on-ring friction (optional interface can be reserved for upgrading)
Test environment & medium Combined conditions of high temperature, dry fricition, oil, water, slurry, abrasive, sand, etc.
Heating system Temperature control range: Room temperature to 100℃
Temperature control accuracy: ±2℃
Heating voltage: 36V
Auxiliary plate holding method Backlash-free self-limiting circumferential holding
Wear loss monitoring 0.00-4.00mm (optional)
Test time display and control range 1s-9999min
Dimensions (L×W×H) Approximately 850×720×1600mm
Weight Approximately 500kg

Features

  • Incorporates a patented five-point balance mechanism that enhances stability during transmission, guidance, and load application, ensuring precise force measurements and consistent results
  • Expandable to include impact testing and online wear measurement, making it adaptable to more advanced testing needs
  • Designed with separate control for the main unit and electrical system, reducing interference and ensuring greater accuracy during testing
  • Equipped with an advanced high-speed data acquisition module, integrating internal algorithms for real-time analysis
  • Includes multiple safety features, such as a protective cover, temperature-controlled safety voltage heating, and millisecond-level early warning systems for enhanced safety during tests
