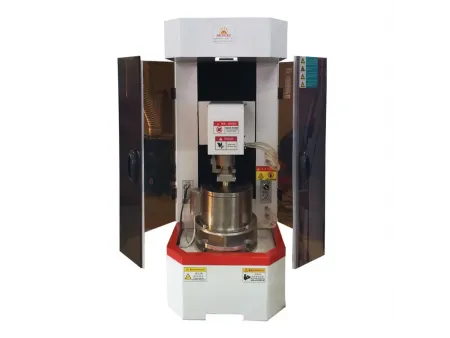

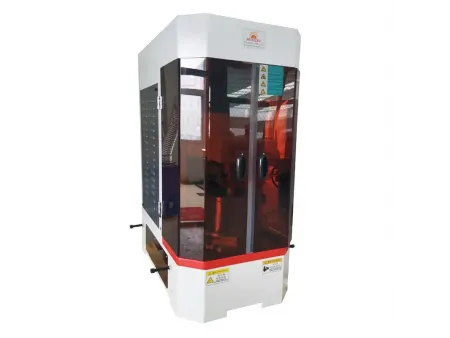

Multi-Function Friction and Wear Testing Machine
Universal tribometer for analysing friction and wear properties of materials and coatings
Standards
ASTM_D3702-94, ASTM G99-17 , ASTM-G133, Din 50324
Applications
Commonly used across industries such as petrochemicals, machinery, energy, transportation, metallurgy, aerospace, automotive manufacturing, and lubrication engineering. The multi-function friction and wear testing system is also an important tool for research institutions and universities, supporting advanced material testing and surface durability analysis.
Our multi-function friction and wear testing machine is a versatile system designed to evaluate the friction and wear properties of materials and surface coatings, supporting reciprocating, rotating, and sliding friction tests. The tester can be used for various testing configurations, including pin-on-disk, ball-on-disk, and end-face friction, with the option to expand to additional modules. It also includes specialized HCW modules for high and low-temperature tests, salt spray corrosion tests, and vacuum testing environments. These customizable features make our testing machines is ideal for comprehensive material performance analysis under diverse conditions.
Technical Specifications
| Max. test force | 200/500/1000N, error ±1% | |
| Loading method | Automatic loading (closed loop control) | |
| Force sensor | 20/50/100kg | |
| Reciprocating friction | Reciprocating frequency | 0.1-20Hz |
| Linear velocity | 0.1-10mm/min (based on stroke calculation, stepless adjustable, error ±5%) | |
| Friction mode | Pin-on-disc friction (optional rolling friction, ball-on-disc friction) | |
| Reciprocating stroke | 0.2-20mm | |
| Friction force measurement | Acceleration dynamic friction force measurement | |
| Force measurement accuracy | ±1% | |
| Sample size | Pin sample: Ø4-10mm (standard 4mm, optional 4.8mm, 5mm), ball sample: Ø6.35mm, disc sample: diameter | |
| * Reciprocating friction module is standard configuration | ||
| Rotational friction | Max. rotation speed | 2000r/min |
| Rotation accuracy | ±1r/min | |
| Rotating diameter | 80mm | |
| Friction method | Pin-on-disc friction, lubricated friction (lubricant 40ml/min) | |
| Force sensor | 20kg | |
| Force measurement accuracy | ±1% | |
| Sample size | Pin sample: Ø4-10mm (standard 4mm, optional 4.8mm, 5mm), ball sample: Ø6.35mm, disc sample: diameter | |
| * Rotational friction module is optional configuration | ||
| Block-on-ring friction | Max. ring speed | 2000r/min |
| Rotation accuracy | ±1% | |
| Ring diameter | 20-50mm (standard 40mm) | |
| Friction method | Lubricated friction (lubricant 40ml/min) | |
| Force sensor | 10kg | |
| Force measurement accuracy | ±1% | |
| Sample size | Ring sample: Ø40×Ø16×10mm, block sample: 30×7×6mm | |
| * Block-on-ring friction module is optional configuration | ||
| Temperature measurement | PT100/thermocouple | |
| Online wear measurement | Photoelectric measurement (optional module can be added) | |
| Resolution of wear measurement | 0.001mm | |
| Lifting height | 0-100mm | |
| Test time display and control range | 10s-9999h (frequency and reciprocating frequency mode) | |
| Data processing | Advantech computer processing system (standard configuration, 1 set) | |
| Friction method | Dry friction, lubricated friction | |
| Optional functions | High temperature rotation module, electrochemical corrosion friction module, conventional high and low temperature environmental test module, salt spray corrosion test module, vacuum environmental test module, ultra-low temperature module, current carrying friction module, wear scar measurement module | |
| Main drive motor power | 750/1000/1500W | |
| Module drive motor power | 500/750/1000W | |
| Software function | Display of load, friction force, friction temperature, reciprocating frequency, friction coefficient, wear loss, and wear volume; Real-time drawing of parameter curves, and saving of real-time data | |
| Dimensions (L×W×H) | Testing machine: 450×800×1050mm Control cabinet: 580×620×1600mm | |
| Weight | 400kg | |
Features
- Fully compliant with most ISO and ASTM standards, ensuring consistent and reliable results
- Includes a heating system with a high-temperature alarm to ensure stability during long-duration tests
- Capable of real-time data collection at a sampling frequency of up to 50kps, providing dynamic and detailed analysis of test results
- Features automatic shutdown or alarm triggers when preset test parameters are exceeded, ensuring safe and efficient operation
