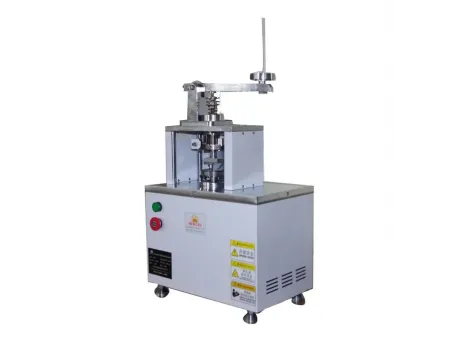

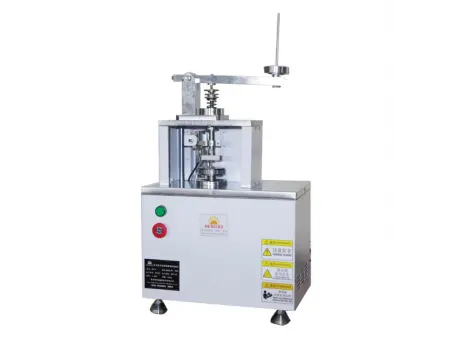

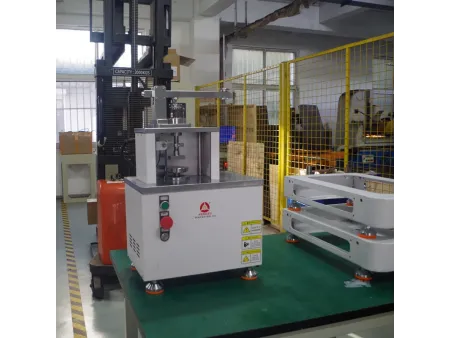

Pin/Ball-on-Disc Friction and Wear Testing Machine

Pin/Ball-on-Disc Friction and Wear Testing Machine
Pin/Ball-on-Disc Friction and Wear Testing Machine
Pin/Ball-on-Disc Friction and Wear Testing Machine
Request a Quote
MPX

Multi capability tribometer for measuring friction, wear, and lubrication of various materials

Standards
ASTM G99-04: Pin-on-disc testing method for friction and wear analysis

Applications
Widely used in industries such as petrochemicals, machinery, energy, transportation, metallurgy, aerospace, automotive manufacturing, and lubrication engineering. This testing machine also plays a key role in research institutions and universities for material analysis and surface performance testing.

Designed for comprehensive friction, wear, and lubrication testing, this tribometer uses a bottom-rotating spindle with direct and indirect weight-loading options, reducing errors during low-load testing.

By testing a variety of metal and non-metal materials, such as plastics and nylon, in pin-on-disc or ball-on-disc configurations, it measures the wear resistance and friction coefficient under selected loads and speeds, providing accurate insights into material performance.

Technical Specifications

Max. test force 20kg
Relative accuracy of test force 500g±10g, 20kg±30g
Max. speed 2000rpm, servo motor stepless speed control
Max. friction torque 1N.m
Relative accuracy of friction torque ±2%
Pin diameter 4.8mm (customizable)
Max. disc diameter 60mm
Contact form Pin-on-disc, ball-on-disc (Ø6.35mm steel ball), extensible
Control mode Microcomputer semi-automatic control
Dimensions (L×W×H) 420×270×580
Power supply 220V 50Hz 5A

Features

  • Compliant with widely recognized standards, including ISO, ASTM, SH, and GB, ensuring reliable and consistent testing results across various industries
  • Offers both heavy and light load testing options, allowing for greater precision and repeatability, regardless of the test scenario
