Automatic Rotary Screw Capping Machine, FX-8

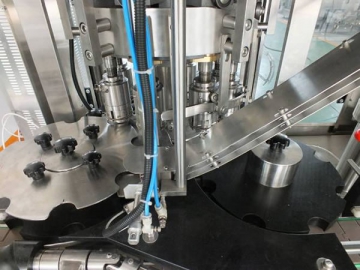

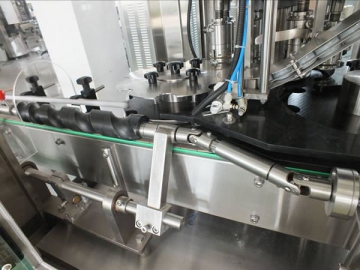

This automatic rotary screw capping machine feeds in bottles, sorts caps, positions caps for bottling and dispenses capped bottles. The rotary screw capper is stable and reliable with accurate positioning that doesn't damage the caps. This machine has eight mechanical heads which dispatch caps quickly, synchronously, and efficiently. These heads can be configured to cap containers of different specifications, easily adjusted by a user-friendly PLC touch screen. With a high qualified rate, the bottle capper seals various sizes of glass and plastic bottles for the food and beverage, pharmaceutical, cosmetics, and chemical industries.
- Bottle diameter: Φ40-100mm, Height 80-280mm
- Cap Specifications: Φ15-50mm Cap height: 15-35mm
- Capping Head: 8
- Capacity: ≤6000 bottles/hour
- Capping qualified rate: ≥99%
- Air Pressure: 0.6~0.8MPA
- Power Source: ~380V, 50HZ
- Power: 3KW
- External Dimensions: 2200 x 1360 x 2400(L x W x H)mm
- Weight: about 1600Kg
1. Cap catcher is made of rubber to prevent damage to caps.
2. Sensors automatically stop the machine when there are no bottles, the bottles are jammed, or there are no caps.
3. Stable and reliable operation.
4. User-friendly touch screen can adjust the height of the elevator and dimensions of the specifications.

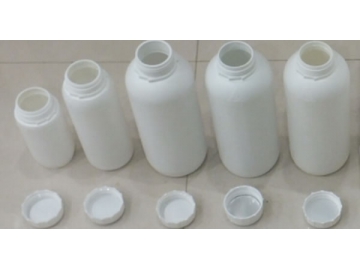

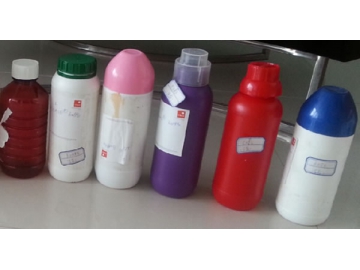

Caps with or without a protective lock ring are suitable
No. | Name | Brand | Origin | Quantity |
1 | Reducer motor | Ziguang | China | 1 |
2 | Power button | Schneider | France | 1 |
3 | Frequency inverter | Schneider | France | 2 |
4 | Sensor for bottles | OPTEX | Japan | 1 |
5 | Sensor for caps | Omron | Japan | 1 |
6 | Cap sort motor | Ziguang | China | 1 |
