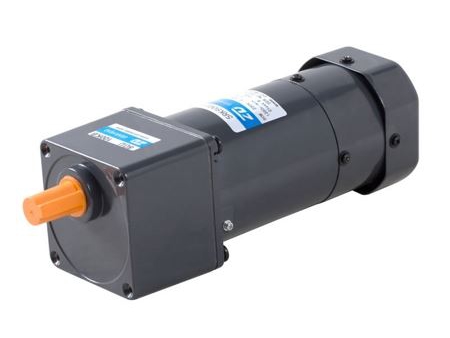

90mm 90W Brake Motor
Request a Quote
Motor Specifications
Model | Rating | Output Power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min | Capacitor μF |
| 30min | 90 | 1ph 100 | 50 | 1.78 | 600 | 700 | 1250 | 30 |
60 | 2.35 | 570 | 1550 | ||||||
| 30min | 90 | 1ph 110 | 60 | 1.72 | 550 | 570 | 1550 | 25 |
1ph 120 | 600 | ||||||||
| 30min | 90 | 1ph 220 | 50 | 0.82 | 560 | 700 | 1250 | 6.0 |
1ph 230 | 0.81 | ||||||||
| 30min | 90 | 1ph 220 | 60 | 0.81 | 560 | 570 | 1550 | 6.0 |
1ph 230 | 0.80 | ||||||||
| 30min | 90 | 3ph 220 | 50 | 0.60 | 1350 | 700 | 1250 | - |
60 | 0.55 | 1100 | 570 | 1550 | |||||
| 30min | 90 | 3ph 380 | 50 | 0.35 | 1350 | 700 | 1250 | - |
60 | 0.32 | 1100 | 570 | 1550 |
Gear Motor-Torque TableAllowance Torque Unit: N.m
Type Motor/Gearhead | Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | ||
Speed r/min | 50Hz | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | ||
60Hz | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | |||
5RK90GU-AFM 5RK90GU-EFM 5RK90GU-CFM 5RK90GU-HFM 5RK90GU-SFM 5RK90GU-S3FM | 5GU()RC 5GU()RT | Allowance Torque | 50Hz | 3.55 | 4.26 | 5.92 | 7.10 | 8.52 | 11.8 | 14.2 | 15.3 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
60Hz | 2.86 | 3.44 | 4.77 | 5.73 | 6.87 | 9.54 | 11.5 | 12.4 | 17.2 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
Type Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 2.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
Speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
5RK90GU-AFM 5RK90GU-EFM 5RK90GU-CFM 5RK90GU-HFM 5RK90GU-SFM 5RK90GU-S3FM | 5GU()KB 5GU()K | 50Hz | 1.70 | 2.00 | 2.80 | 3.40 | 4.30 | 5.10 | 5.31 | 6.40 | 7.70 | 9.20 | 9.55 | 11.6 | 13.9 | 6.6 | 18.1 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
60Hz | 1.40 | 1.70 | 2.30 | 2.80 | 3.50 | 4.20 | 4.43 | 5.20 | 6.20 | 7.50 | 7.81 | 9.40 | 11.3 | 13.5 | 14.5 | 18.8 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |

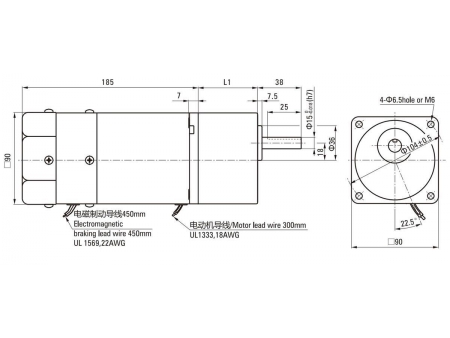

L1=65.5mm
