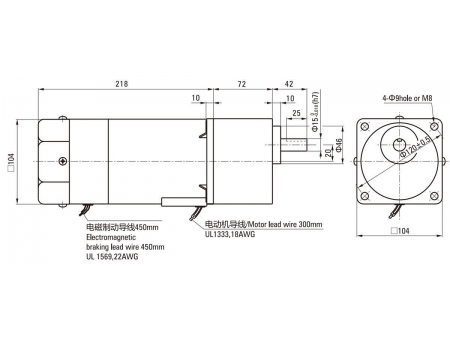

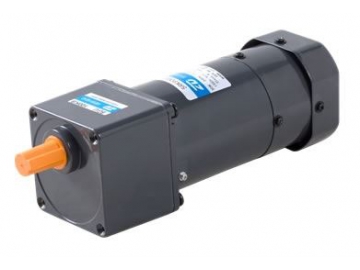

104mm 200W Brake Motor

Request a Quote

View All: http://zd-drivers.com/1-4-10-brake-ac-gear-motor.html

Motor Specifications

Model	Rating	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
6RK200GU-AFM	30min	200	1ph 100	50	3.20	900	1385	1250	45
				60	3.50		1120	1550
6RK200GU-EFM	30min	200	1ph 110	60	2.75	850	1120	1550	35
			1ph 120		2.65
6RK200GU-CFM	30min	200	1ph 220	50	1.40	1100	1385	1250	12
			1ph 230
6RK200GU-HFM	30min	200	1ph 220	60	1.40	1000	1120	1550	12
			1ph 230
6RK200GU-SFM	30min	200	3ph 220	50	1.20	3400	1385	1250	-
				60	1.00	2700	1120	1550
6RK200GU-S3FM	30min	200	3ph 380	50	0.69	3400	1385	1250	-
				60	0.58	2700	1120	1550

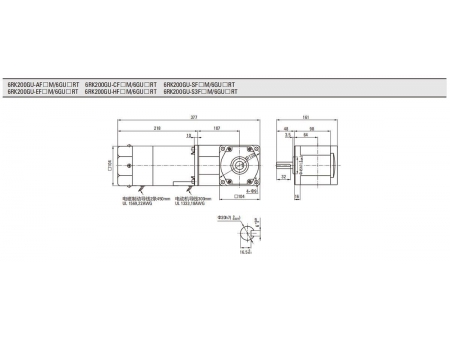

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead		Gear Ratio		7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	200	166	120	100	83	60	50	41	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
6RK200GU-AFM 6RK200GU-EFM 6RK200GU-CFM 6RK200GU-HFM 6RK200GU-SFM 6RK200GU-S3FM	6GU()RC 6GU()RT	Allowance Torque	50Hz	9.28	11.1	13.9	16.7	20.1	25.2	30.3	36.3	50.4	60.0	60.0	60.0	60.0	60.0	60.0	60.0
	6GU()RC 6GU()RT	Allowance Torque	60Hz	7.49	8.98	11.2	13.5	16.2	20.3	24.4	29.3	40.7	48.8	60.0	60.0	60.0	60.0	60.0	60.0

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	2.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
6RK200GU-AFM 6RK200GU-EFM 6RK200GU-CFM 6RK200GU-HFM 6RK200GU-SFM 6RK200GU-S3FM	6GU()K	50Hz	3.71	4.46	6.19	7.43	9.28	11.1	11.9	13.9	16.7	20.1	20.8	25.2	30.3	36.3	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0
	6GU()K	60Hz	2.99	3.59	4.99	5.99	7.49	8.98	9.70	11.2	13.5	16.2	17.2	20.3	24.4	29.3	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0
