Cut Size Ream Wrapper

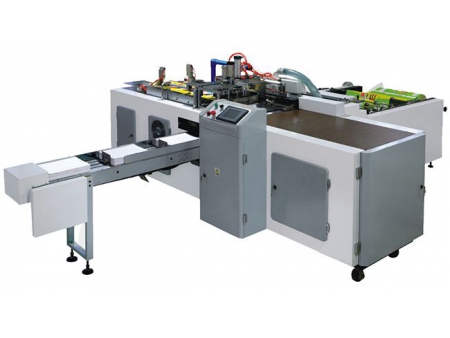

High speed wrapping machine for copy paper
CBADEN Machinery Group's new high speed copy paper wrapping machine, model DTD-A60, meets increasing demands in the paper product industry. Using internationally-proven techniques, the ream wrapping machine shortens packaging time with its fully automatic production. With high quality connecting rods and transverse paper feeding, the paper packaging machine quickly completes automatic paper feeding, paper falling, gluing and wrapping. This machine packages size A4 photocopy paper (210×297mm). Upon request, we can customize the copy paper wrapping machine to package size A3 (420 x 297mm).
1. Uses a multi-functional infinite speed regulation with digital display, PLC control, and user-friendly touch screen so the ream wrapper can do automatic transverse cutting and feeding of paper roll overwrap.
2. Can pack both common color printing paper and top grade color printing paper.
3. Equipped with an advanced automatic gluing spraying system for efficiency and easy operation.
| Productive capacity | 60 reams/min |
| Overwrapping paper feeding speed (overwrapping paper roll can be automatically cross cut and fed) | 60 sheets/min |
| Specification of packed paper | 210×297×50mm (Based on the height of 500 pieces of copy paper.) |
| Wrapping material | Roll laminated paper |
| Sealing method | Hot melt glue |
| Power supply | 380V/3Phase/4Wire |
| Motor power | 18kw |
| Rubber roller power | 2.25 kw |
| Compressed air consumption | 0.6-0.8 mpa |
| Overwrapping Paper size (Length×Width) | 550-560mm×386mm |
| Overall dimension | 4530×3050×1450mm |
| Weight | 2.5T |
At CBADEN, we supply an extensive range of converting & printing machines and provide comprehensive services to accommodate customer's individual production demands.
