High Speed Hot Melt Coater, 150M/min (RT-150 Series)
Request a Quote
Features

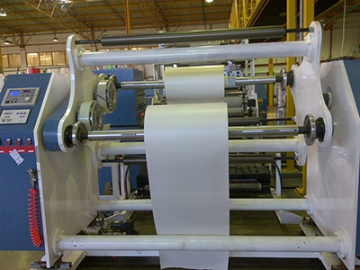

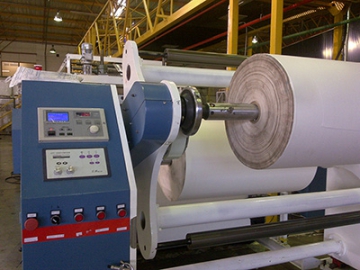

- The high speed hot melt coater is designed with two stations for rewind/unwind. Roll change can be quickly carried out without machine stop, minimizing the material waste.
- A web guiding system is adopted for the unwind.
- Equipped with high precision alloy steel coating heads, outstanding coating result is achieved by the hot melt coating equipment.
Applications
The hot melt coating equipment is suitable for the manufacture of double sided tapes, kraft paper tapes, self-adhesive labels, conductive fabrics, aluminum foil tapes, duct tapes, etc.
Technical Parameters
| Model | RT-150 |
| Coating Width | 400mm-2500mm |
| Coating Speed | 150m/min |
| Coating Weight | 15g-45g |
| Unwind Roll Diameter | 1000mm |
| Rewind Roll Diameter | 1000mm |
| Web Guiding System | 2 sets |
| Length | 10500mm |
| Height | 1800mm |
