Hydraulic Reel Stand
Request a Quote
Individual Machines for Corrugated Cardboard Production

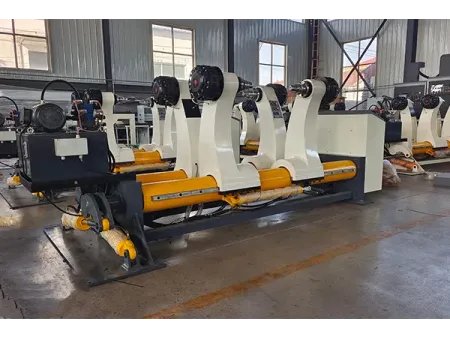

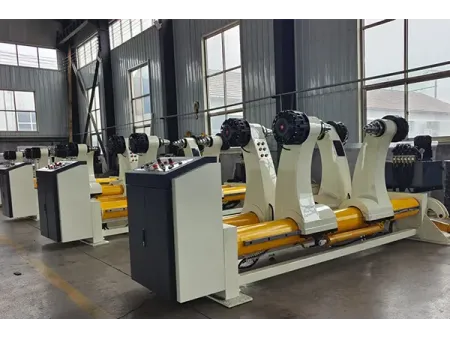

Heavy Duty Hydraulic Reel Stand, CZYL-HRS
The heavy duty hydraulic reel stand is designed for stable and efficient raw paper handling in corrugated cardboard production. Its robust four-arm structure, advanced braking system, and hydraulic-electric control functions provide high reliability and precision during operation.
Features
- Robust Structure
Double-roller symmetrical four-arm design supports two paper rolls simultaneously for continuous operation. - Hydraulic and Electric Control
Hydraulic system lifts paper rolls while the electric-mechanical system manages pressing and alignment, ensuring smooth performance. - Advanced Braking System
Equipped with imported Italian multi-point brakes and an automatic expanding reel clamp to minimize paper waste. - High Capacity
Handles base paper widths ranging from 1800–2500 mm and supports rolls up to 5 tons.
Specifications
| Working width (mm) | 1800 | 2000 | 2200 | 2500 |
| Max. paper roll width (mm) | 1800 | 2000 | 2200 | 2500 |
| Min. paper roll width (mm) | 80 | 80 | 80 | 80 |
| Reel stand spindle diameter (mm) | Ø240 | Ø240 | Ø240 | Ø240 |
| Air pressure (MPa) | 0.4-0.8 | |||
| Dimensions (L×W×H) (m) | 4.3×1.8×1.6 | 4.5×1.8×1.6 | 4.7×1.8×1.6 | 4.9×1.8×1.6 |
Electric Shaftless Reel Stand, CZYL-ESM
Designed for stable raw paper feeding in corrugated cardboard production, the electric shaftless reel stand combines a compact four-arm laFAt with manual braking and torsion clutch technology to ensure reliable operation, precise tension control, and operator safety.
Features
- Compact Design
Single-slide symmetrical four-arm structure supports two paper rolls simultaneously, saving space while maintaining efficiency. - Capacity
Handles paper rolls up to 1400 mm in diameter with a maximum weight of 2 tons. - Tension Control
Manual disc brake system enables flexible adjustment of paper tension during production. - Safe Operation
Equipped with a uniform torsion clutch in the arm and rotating mechanism for dependable and safe handling.
Specifications
| Working width (mm) | 1800 | 2000 | 2200 | 2500 |
| Max. paper roll width (mm) | 1800 | 2000 | 2200 | 2500 |
| Min. paper roll width (mm) | 80 | 80 | 80 | 80 |
| Reel stand spindle diameter (mm) | Ø240 | Ø240 | Ø240 | Ø240 |
| Air pressure (MPa) | 0.4-0.8 | |||
| Dimensions (L×W×H) (m) | 4.3×1.8×1.6 | 4.5×1.8×1.6 | 4.7×1.8×1.6 | 4.9×1.8×1.6 |
