RSQ Low Power Solenoid Valve Manufacturer

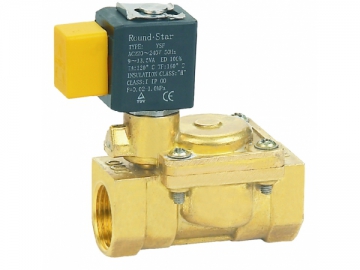

RSQ Low Power Solenoid Valve

Request a Quote

View All: http://solenoidvalvecn.com

RSQ Low Power SolenoidValve, G3/8″～G1″

Features
1. The RSQ low powersolenoid valve is a valve for use with water,liquid, gas and oil.
2. The temperature of the medium is between -10 and 80℃.
3. The acting pattern: pilot type.
4. The RSQ low power solenoid valve uses thenormally closed pattern.
5. It is made with the brass HPb59-1.
6. The RSQ low power solenoidvalve is sealed by the NBRmembrane.
7.Protection degree of the coils: IP65
8. Voltage range: AC-15%～10% DC -5%～10%

Technical Parameters of the RSQ Low Power Solenoid Valve

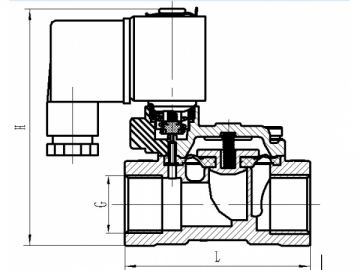

Model	Hole diameter (mm)	Screw thread G		Working Pressure (bar)	Cv	A	B
Model	Hole diameter (mm)	Screw thread G		Working Pressure (bar)	Cv	(mm)	(mm)
RSQ-15	13.5	G3/8″	G1/2″	0～16	4.5	66	82
RSQ-20	18	G3/4″		0～12	5.8	79	89
RSQ-25	24	G1″		0～12	14	105	106

Note: The valve issuitable for use in choosing the VITON membrane with the medium at maximumtemperature of 120℃.

YUYAO NO.4 INSTRUMENT FACTORY is a major manufacturerof low power solenoid valve, based in China. We offer various types of products such aslow power solenoid valve, pilot solenoid valve, water cooler solenoid valve andso on. Our products are high quality andcompetitively priced. We can completethe full chain of manufacturing plate liquid solenoid valve, gas mini solenoidvalve, etc. right here in China. Our lower manufacturing cost can save yourpurchasing cost. A more detaileddescription of our product is shown on the page.
