Hydraulic Double-Acting Jack
Request a Quote

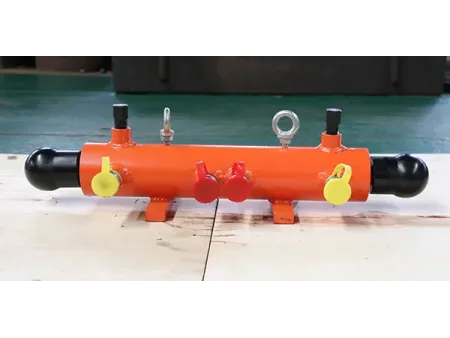

Double-acting horizontal cylinder for bidirectional loading and displacement testing in pile foundation applications
- Max. Lifting Capacity 100 T
- Stroke 200 mm
- Max. Working Pressure 65 MPa
Double-acting jack is specially designed for pile testing or horizontal movement of equipment. It enables forward and backward piston motion simultaneously, achieving a positional error of approximately 5 mm. The rod end is equipped with a spherical joint flange to ensure stable alignment. Its bidirectional horizontal operation ensures minimal deviation and reliable performance.
Technical Parameters
| Model | Lifting Capacity (T) | Stroke (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Rod Diameter (mm) | Height (mm) | Working Pressure (MPa) | Weight (kg) |
| | 10 | 200 | 85 | 45 | 30 | 110 | 50.95 | 40 |
| | 20 | 200 | 89 | 63 | 40 | 780 | 64.5 | 44 |
| | 30 | 200 | 114 | 80 | 50 | 790 | 59.8 | 63 |
| | 50 | 200 | 140 | 100 | 70 | 840 | 63.7 | 97 |
| | 100 | 200 | 180 | 140 | 100 | 210 | 65 | 90 |
Features
- Bidirectional motion: Hydraulic rod extends and retracts synchronously, suitable for horizontal static load operations.
- Compact structure: Low-height design allows installation in confined spaces.
- High stability: Precision piston components ensure smooth operation and accurate positioning.
- Durable and reliable: Made from high-quality 27SiMn alloy steel with heat treatment for longer service life.
- Versatile application: Ideal for equipment positioning, component adjustment, mold removal, and related tasks.
- Safe and controlled operation: Provides precise displacement control for reliable, secure operation.
