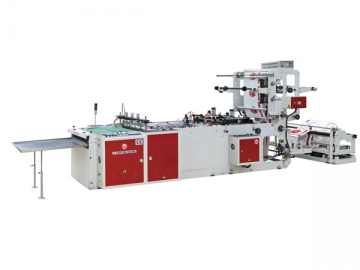

CW-800SBD DHL Multi-Function Bag Making Machine

CW-800SBD DHL Multi-Function Bag Making Machine
CW-800SBD DHL Multi-Function Bag Making Machine
CW-800SBD DHL Multi-Function Bag Making Machine
CW-800SBD DHL Multi-Function Bag Making Machine
CW-800SBD DHL Multi-Function Bag Making Machine
Request a Quote

Features
1. The multifunction bag making machine boasts heavy duty, multiple functions, high speed as well as great output. It is primarily used for mailing bag and postal bag making.
2. With an automatic design, the product is easy for operation.

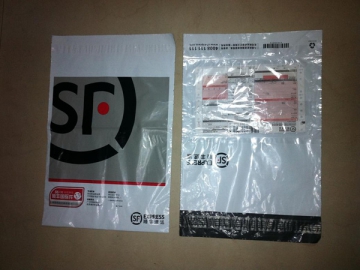

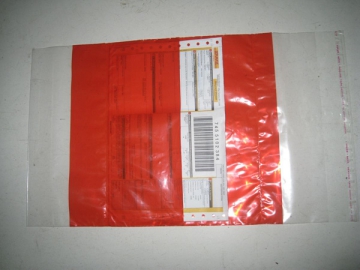

3. The bag making equipment can be provided with different functions to produce different types of bags, such as PE top folding die cut bag, bottom sealing bag and double line sealing bag, as well as OPP header card bag, etc.
4. The bag making machine adopts the newly devised longitudinal sealing knife of DHL courier bag, circulation cooling device of side sealing knife plus top folding continuous bag mouth sealing device.
5. Additionally, the bag making unit can be optionally equipped with bottom sealing knife and double seal knife, the unit used for making anti-explosion edges for OPP bags, hot air sealing device especially for DHL bag, perforation line making knife, as well as double-faced adhesive equipment.

Technical Parameters
ModelCW-800SBD DHL
Bag Making Length (Height of Bag)250 -750mm
Bag Making Width250 -600mm
Bag Making SpeedDHL Bag70pcs/min
Die Cut Hand Bag90pcs/min
OPP Bag110pcs/min
Top Folding50 -75mm
Bottom Gusset20 -60mm
Total Power10 kW
Equipment Weight2300 kg
Equipment Dimension6500× 1600×1870mm
Air Compression5HP

Note: Owing to our consecutive perfection of existing equipment and development of new functions, the bag making unit may undergo a series of changes in terms of appearance, performance characteristics as well as technical parameters. Please understand if you are not given further notice.

Related Names
Courier Bag Making Machine | DHL Bag Making Machine | Security Bag Making Machine | Air Mailing Bag Making Machine
