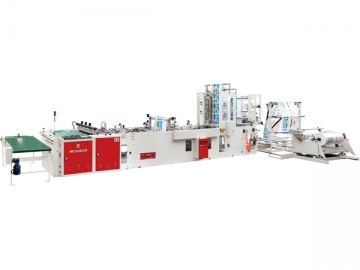

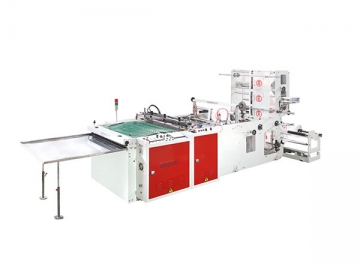

Brief introduction This product is a multi-function bag making machine. It is designed for fully automatic production and ease of operation.
Feature 1. Heavy-duty frame design, less machine vibration under high-speed running 2. Special sealing blade design, exchange quickly and easily 3. Feeding motor automatic control, trouble-free operation.
Option 1)Single sheet folding unit 2)Top folding continuously sealing device 3)Jumbo roll automatic lifting device 4)Auto collection device 5)Chicken bag puncher device 6)Sealing device (for producing DHL bag) 7)Perforation line device 8)OPP header bag (with pearlized film) 9)Adhesive tape adding device

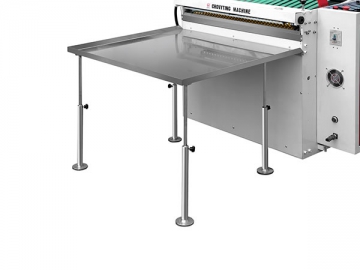

Collection table
Technical Parameters
Type
CW-800SBD
CW-1000SBD
Bag size
Side seal
Double seal
Bottom seal
Side seal
Double seal
Bottom seal
Bag height
750mm
750mm
900mm
950mm
950mm
900mm
Bag width
900mm
900mm
700mm
900mm
900mm
900mm
Speed of bag making
Side seal bag
150pcs/min
side seal bag
140pcs/min
Bottom seal bag
140pcs/min
bottom seal bag
130pcs/min
Double seal bag
120pcs/min
double seal bag
110pcs/min
OPP bag
150pcs/min
OPP bag
150pcs/min
Total power
8KW
8.5KW
Machine weight
1300kg
1470kg
Machine dimension
5000X1550X1870mm
5000X1750X1870mm
Air compressor
5HP
5HP
