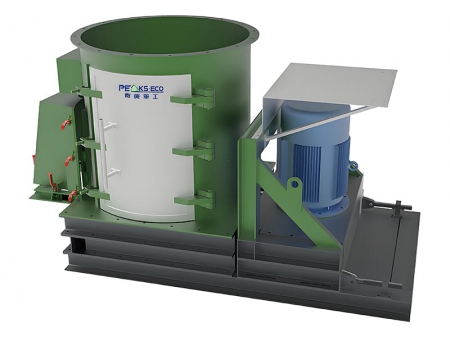

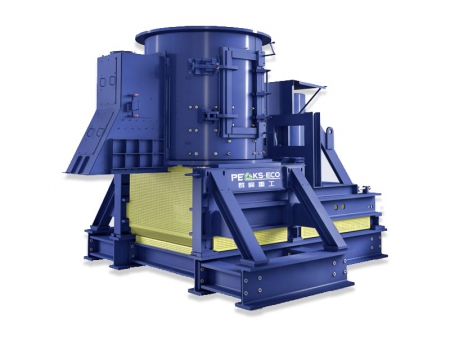

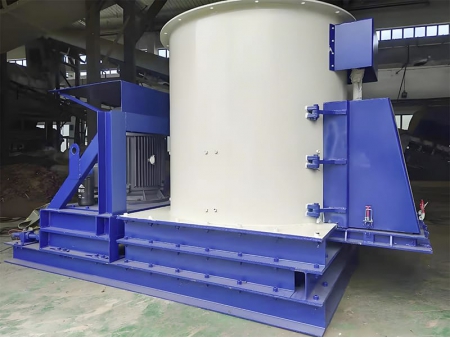

Vertical shredder is designed to refine pre-crushed metal blocks through high-speed hammer impact and extrusion. This process effectively removes surface paint, non-ferrous metals, and other contaminants, significantly enhancing material purity and bulk density.

Main Components

Engineered to boost operation efficiency, vertical shredders are characterized by numerous advantages including:

The vertical crusher housing is precision-welded and undergoes stress-relief annealing, then finished on an advanced CNC machining center to ensure exceptional structural integrity and durability.

A one-piece boring process guarantees stable, high-load operation over long periods while extending the lifespan of critical transmission components.

Hydraulic-driven housing opening and closing, paired with a modular, detachable design, allow for quick and easy replacement of cutting tools—minimizing downtime and boosting productivity.

Crafted from ultra-high-strength alloy steel, the main shaft benefits from advanced heat treatments including quenching, tempering, and surface hardening. This delivers uniform stress distribution, outstanding strength, excellent toughness, and resistance to deformation—ensuring reliable operation even under heavy workloads.

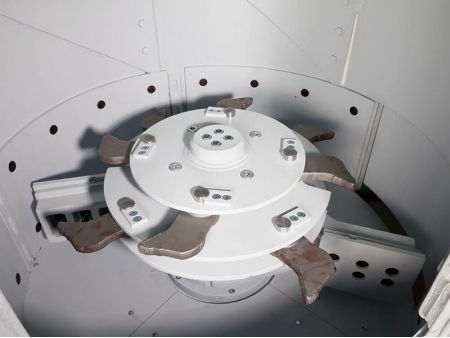

Key components such as hammers, rotary knives, and liners are made from high-quality manganese cast steel. Their strength, toughness, and work-hardening surface properties maximize wear resistance, extending service life and reducing replacement costs.

The belt-driven main shaft effectively cushions motor shocks caused by stall conditions during crushing, enhancing motor protection and operational stability.

Featuring a large-diameter, precision-cast pulley that increases rotational inertia to reduce cutting energy consumption. The pulley’s precise dynamic balance ensures smooth, low-vibration operation.

The hydraulic coupling torque transmission enables soft motor startups, protecting the motor and minimizing impact on your electrical system.

Technical Specifications

Capacity	2t/h
Rotation speed	750r/min
Discharge door	1pc
Maintenance door	1pc
Motor power	55kW
Machine weight	Approx. 7T
Dimensions (L×W×H)	4×2×2m
