Stage Lighting LED Spot Light Bar Code SS356XAL Stage Lighting
Request a Quote
Characteristics
- 16Bit gray scale
- Buttons protection setting
- Support DMX512 control
- Multiple DMX control modes
- Selection and adjustment of multiple color temperature
- New innovational HSIC color mixing system
Technical Specifications
- Optical System
- Color temperature: 1800k-8000k
- Light source: 12x30W (RGBAL)
- Optical angle: 25° (40°, 40°x20°, 60°x20°optional)
- Color rendering index: ≥90Ra
- CQS >90
- Electrical Connections
- Input voltage: 100-240VAC,50/60Hz
- Rated power: 320W
- Drive current: 600mA
- Power line: Power input and output, signal input and output, RJ45 input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system: Natural radiation
- RTCP: DMX512, RDM, ARTNET
- Display: On board Control, Custom Mode, 0-25Hz Strobe
- Channel mode: HSIC/7CHS, SSP/8CHS, TOUR/12CHS, TR16/18CHS, PIXEL.1/39CHS, PIXEL.2/63CHS
- Appearance
- Size: 967x230x227mm
- Weight: 12.5kg
- Shell: Extruded aluminum
- Color: Black
- Working Environment
- Ambient temperature: 0℃~40℃
- IP Rating: IP20
- Approvals
- Certification
- CE, MET

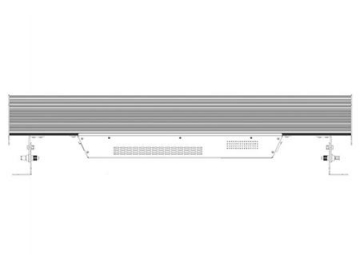

Dimensions
Illumination Contours

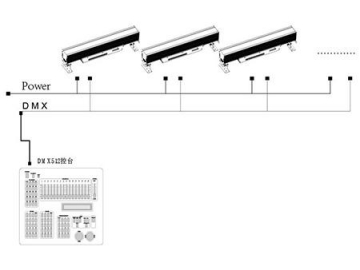

Installations
Optional Accessories
