Stage Lighting 4x30W LED Spot Light Bar Code SS366XAL Stage Lighting
Request a Quote
Characteristics
- 16Bit gray scale
- Multiple DMX control modes
- Support DMX512 control
- New innovational HSIC color mixing system
- Selection and adjustment of multiple color temperature
Technical Specifications
- Optical System
- Light source: 4x30W (RGBAL)
- Optical angle:25° (40°, 40°x20°, 60°x20° optional)
- Color temperature: 1800k-8000k
- Color rendering index: ≥90Ra
- CQS:＞90
- Electrical Connections
- Input voltage: 100-240VAC,50/60Hz
- Rated power:108W
- Drive current: 600mA
- Power line: Power input and output, signal input and output, RJ45 input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system: Natural radiation
- RTCP: DMX512, RDM, ARTNET
- Functional effect: On board Control, Custom Mode, 0-25Hz Strobe
- Channel mode: HSIC/7CHS, SSP/8CHS, TOUR/12CHS, TR16/18CHS, PIXEL.1/15CHS, PIXEL.2/23CHS
- Appearance
- Size: 326x230x234mm
- Weight: 5.5kg
- Shell: Extruded aluminum
- Color: Black
- Working Environment
- Ambient temperature: 0℃~45℃
- IP Rating: IP20
- Approvals
- Certification
- CE, MET

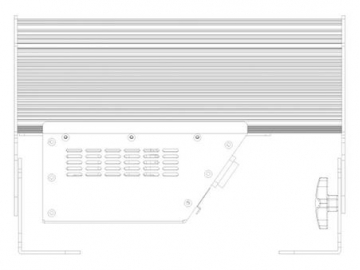

Dimensions
Illumination Contours
Installations
