PVJ Series Dust-Free Temperature Test Chamber

Request a Quote

Website: http://testchamber-en.com/1-6-dust-free-temperature-test-chamber.html

Climate test chamber for testing materials in a temperature-controlled and dust-free environment

This compact vertical chamber maintains a controlled temperature environment with clean air conditions for sensitive materials. A top-and-bottom airflow system distributes heat evenly, while the chamber achieves Class 100 cleanliness to protect samples that require low particulate levels.

Standard Configuration

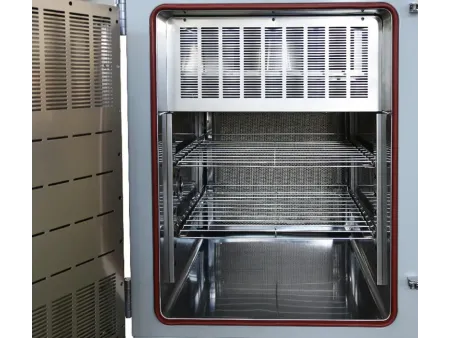

2 sets of specimen racks
1 cable port (Ø50 mm)
1 vent port
1 specimen power supply terminal
1 RS-485 communication port
1 RJ-45 Ethernet port

Features

Upright, compact design that helps save valuable floor space
Balanced vertical airflow to keep temperatures uniform across all shelves
Class 100 clean conditions to support tests requiring minimal dust or particles
Consistent performance and solid, reliable construction
Well-suited for heat exposure and reliability testing in controlled clean environments

Technical Parameters

Modle			PVJ221
Chamber volume (L)			193
Performance	Temperature range		(Ambient temperature 60)℃～ 200℃
	Temperature fluctuation	≤100℃	0.4℃
		≤200℃	0.8℃
	Temperature deviation	≤100℃	±2.0℃
		≤200℃	±2.5℃
	Temperature rise rate		(Ambient temperature 20)℃→200℃: ≤50min
	Cleanliness		Class 100
Rated power (kW)			4.2
Max. current (A)			11
Internal dimensions (mm)			W610×H530×D600
External dimensions (without protrusion) (mm)			W770×H1280×D1025
Power supply			220V (single phase protective grounding wire)

Performance measured at 25 °C ambient temperature, with the chamber empty and no air exchange during operation.
