Vacuum Pressure Impregnation System
Request a Quote
Coil Manufacturing Equipment & Technology

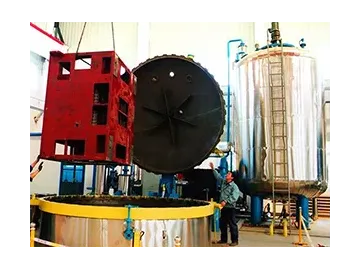

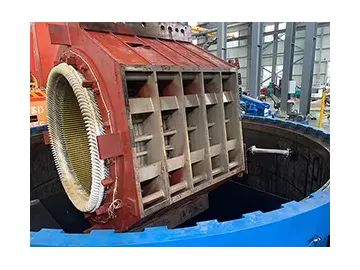

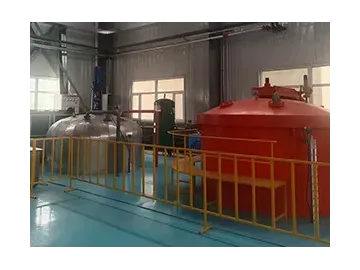

Vertical impregnator for complete insulation of motor wound components

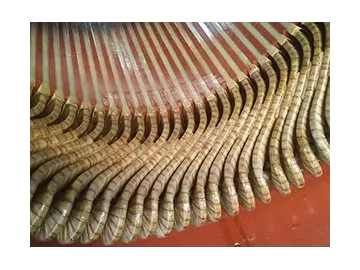

Vacuum pressure impregnation system is the key equipment for the insulation treatment of high-voltage motors, special transformers and explosion-proof motors, generators, traction motors and other electric components. Thanks to the process of impregnation with high vacuum first and then adding pressure, this VPI system enables the impregnating agent quickly and thoroughly penetrated into the workpieces, which improves the mechanical strength, insulating strength, moisture-proofing and mildew-proofing properties of the workpieces.
Specifications
| Model | Nominal diameter of tank | Nominal volume of tank | Working vacuum | Working pressure | Power | Floor area (W×L) |
| 700mm | 0.46m³ | 20-5000Pa | 0.1-2.0MPa | 7kW | 1800×3400mm | |
| 900mm | 0.94m³ | 20-5000Pa | 0.1-2.0MPa | 15kW | 2100×3400mm | |
| 1000mm | 1.74m³ | 20-5000Pa | 0.1-2.0MPa | 22kW | 2100×3400mm | |
| 1200mm | 1.92m³ | 20-5000Pa | 0.1-2.0MPa | 27kW | 2200×4500mm | |
| 1400mm | 3.85m³ | 20-5000Pa | 0.1-2.0MPa | 27kW | 2400×4800mm | |
| 1600mm | 4.47m³ | 20-5000Pa | 0.1-2.0MPa | 27kW | 3200×5400mm | |
| 1800mm | 6.65m³ | 20-5000Pa | 0.1-2.0MPa | 33kW | 3800×6900mm | |
| 2000mm | 8.78m³ | 20-5000Pa | 0.1-2.0MPa | 35kW | 4500×7800mm | |
| 2500mm | 16.50m³ | 20-5000Pa | 0.1-2.0MPa | 40kW | 4900×8500mm | |
| 2800mm | 22.17m³ | 20-5000Pa | 0.1-2.0MPa | 45kW | 5800×9400mm | |
| 3000mm | 26.49m³ | 20-5000Pa | 0.1-2.0MPa | 45kW | 6600×11400mm | |
| 5000mm | 49.86m³ | 20-5000Pa | 0.1-2.0MPa | 60kW | 9600×13500mm |
