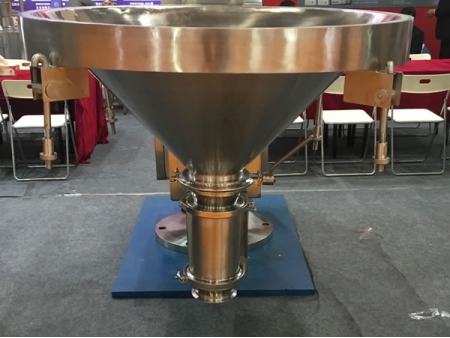

Unloading Hopper Unit
Request a Quote
Applications
- The unloading hopper unit is designed to meet GMP standards
- Integrated with FL, PGL, GFG and FG series of fluid bed to realize dust-free operation
Technical Paramenters
| Specification | ||||||
| capacity | kg | 150 | 250 | 350 | 500 | 750 |
| product container weight(empty) | kg | 85 | 120 | 160 | 220 | 250 |
| motor power | kw | 1.1 | 1.1 | 2.2 | 3.0 | 3.0 |
| lifting speed | m/min | 0-4 | 0-4 | 0-4 | 0-3.5 | 0-3 |
| A | mm | 4000 | 4000 | 4000 | 4000 | 4000 |
| B | mm | 3900 | 3900 | 3900 | 3900 | 3900 |
| C | mm | 3700 | 3700 | 3700 | 3700 | 3700 |
| D | mm | 2200 | 2200 | 2200 | 2200 | 2200 |
| E | mm | 1400 | 1400 | 1600 | 1700 | 1800 |
| F | mm | 1095 | 1290 | 1495 | 1690 | 1890 |
Features:
- Safe and reliable hydraulic control
- Fully sealed fluid bed
- Designed and manufactured according to GMP standards
