Automatic Hydraulic Drawing Bench
Request a Quote
View All: http://shcablemachinery.com
Description
The automatic hydraulic drawing bench is an incredible piece of equipment that has been engineered for draw forming and length cutting of various copper-aluminum profiles after an extrusion process. The drawn profiles have stable cross-sectional diameters with outstanding hardness, strength and conductivity.
Production Process

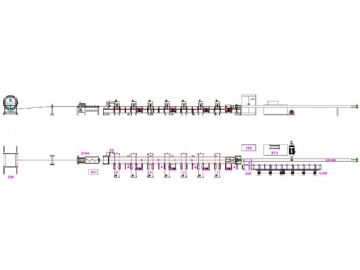

Place the coil → Straightening and feeding → Pass through die → Clamp copper bar → Drawing → Cutting copper bar → Transport → Conveyor with roller → Fixed length cutting → Unloading and stacking
| Model | F-50-12 | F-50-10 | F-50-8 | |
| Drawing force (t) | 12 | 10 | 8 | |
| Max drawing length (m) | 50 | 50 | 50 | |
| Copper bar size | Width (mm) | ≤200 | ≤200 | ≤200 |
| Thickness (mm) | ≤20 | ≤20 | ≤20 | |
| Drawing speed (m/min) | 3~15 | 3~15 | 3~15 | |
| Return speed (m/min) | 45 | 45 | 45 | |
| Main motor (kw) | 75KW | 75KW | 75KW | |
