Hydraulic test equipment for hydraulic components such as pumps, motors, cylinders and valves

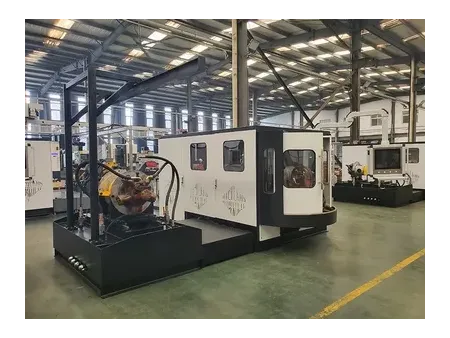

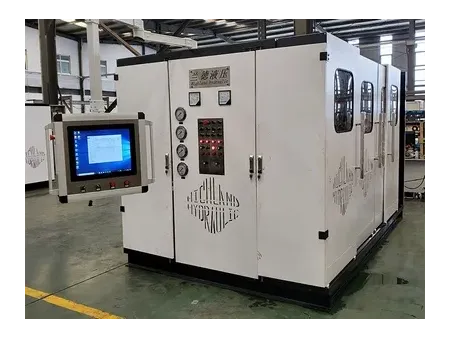

The Highland Hydraulic Test Bench is a modular, high performance solution designed for factory and type testing of hydraulic pumps, motors, cylinders, valves, and valve groups. Though customized, it has reached a modular assembly level with standardized software, oil tank design, valve body, and drive platform, allowing for quicker delivery times from the original 3 months down to just 2 weeks in some cases, simply by adjusting the pipeline layout as per your requirements.

Our test bench offers comprehensive testing functions, including pressure, flow, and temperature monitoring, providing an in-depth performance assessment for hydraulic pumps. We also offer a one-stop service from needs analysis and design to manufacturing, installation, and technical support. these test benches are available in various configurations, including factory test benches, type test benches, and maintenance test benches.

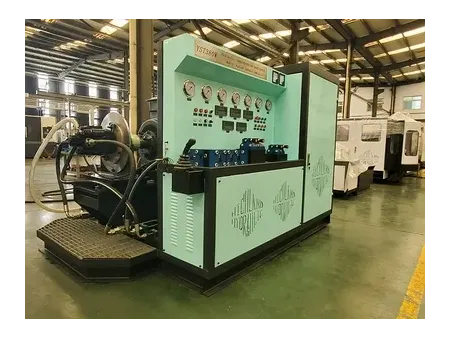

YST Series Hydraulic Test Benches

The YST series is specially designed for manufacturers and maintenance companies to verify the quality of hydraulic pumps, motors, and valves, as well as to diagnose system issues. The benches can be customized to meet your specific testing requirements.

Standard Test Bench Models Include:

Hydraulic Pump Test Bench
Hydraulic Motor Test Bench
Hydraulic Cylinder Test Bench
Valve Factory Test Bench
Transmission & Torque Converter Test Bench

Typical Applications

Hydraulic Pumps: Open and closed pumps, piston pumps, gear pumps, vane pumps, screw pumps
High-Speed Hydraulic Motors: Through-shaft swashplate motors, angled-axis motors
Low-Speed High-Torque Motors: Radial five-star motors, internal curve motors, cycloidal motors
Hydraulic Cylinders
Valves: Rexroth, Yuken valves
Transmissions & Torque Converters
Engines

Features

Energy-Saving Options: Includes test benches with electric or hydraulic energy recovery systems
Power Range: Available in 75KW, 160KW, 250KW, and 400KW options
High Load Pressure: Up to 42 MPa, with short-term capability of reaching 50 MPa; max flow exceeds 1000L
Drive Options: Choose from variable frequency or servo motor drives, direct engine drive, or engine-hydraulic pump/motor conversion drive
Drive Motor Types: Standard AC motors, variable frequency AC motors, and permanent magnet DC variable frequency motors, offering wide speed ranges and excellent performance
Standard Dimensions: Available in sizes 3.8m x 2.1m x 2.2m or 3.8m x 4.1m x 2.2m
Weight: 3 to 8 tons (excluding hydraulic oil)

Why Choose Highland’s Hydraulic Test Benches?

Proven Expertise: With 20 years of experience, Highland delivers high-quality hydraulic test bench solutions, customized to meet each client's unique needs.
Industry-Wide Applications: Our hydraulic test benches are used in industries ranging from construction machinery to agricultural equipment, meeting diverse testing requirements. With continuous innovation and advanced technology, we ensure each test bench meets stringent quality standards.
Dedicated Customer Support: Highland is committed to meeting all your hydraulic testing needs with professional expertise and efficient service. Whether you need a standard model or a fully customized solution, Highland offers the best options to enhance your testing accuracy and efficiency.

Ready to boost your testing capabilities with Highland’s reliable hydraulic test benches? to discuss how we can support your specific needs.

Examples of Hydraulic Test Bench Applications

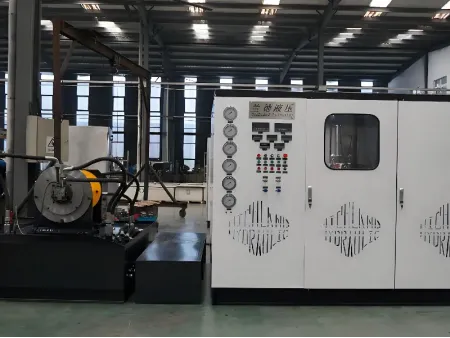

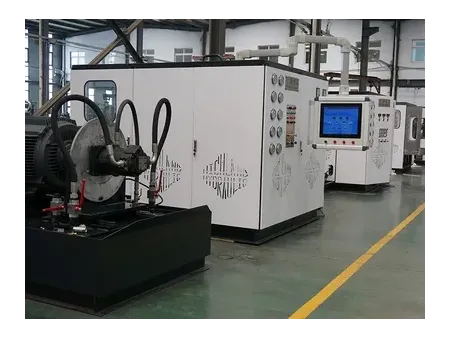

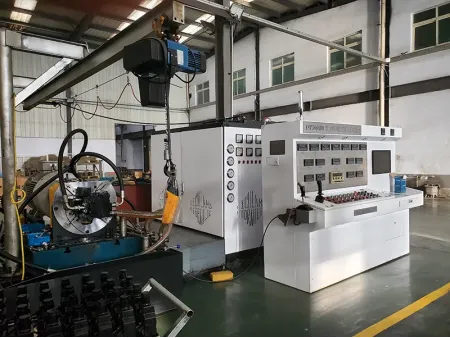

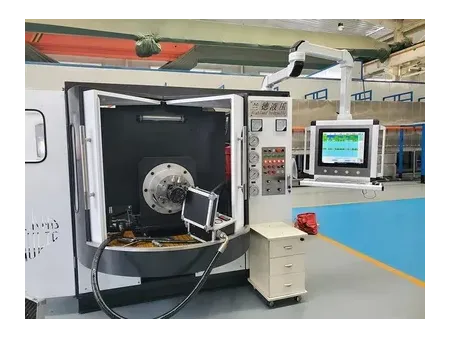

Hydraulic Pump Test Bench for Excavators

This product is known for its user-friendly design and interface, making performance testing of excavator hydraulic pumps simple and efficient. The hydraulic test bench not only provides essential test data like flow, pressure, and power but also includes an advanced diagnostic system to help users quickly identify pump issues. Designed with operator convenience in mind, this test bench ensures that even non-specialists can easily conduct hydraulic pump testing and maintenance.

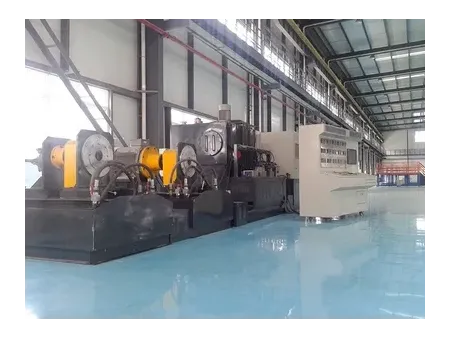

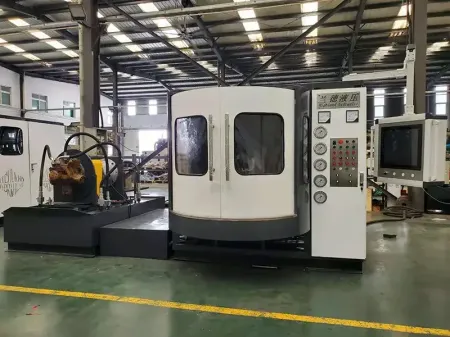

Power Recovery Hydraulic Test Bench

This test bench stands out for its energy-saving capability, achieving up to 80% efficiency. Unlike conventional test benches, which convert pressure energy into heat through hydraulic loading, the power recovery test bench operates differently: an electric motor drives the pump under test, which outputs high-pressure oil to power an auxiliary motor. This auxiliary motor, in turn, assists the electric motor in driving the test pump. During testing, any energy loss is offset by minimal electricity from the grid—the lower the energy loss, the higher the energy efficiency.

Not only does the power recovery feature reduce operating costs, but it also aligns with the industry’s focus on sustainable development. This energy-saving test bench offers multiple modular layout options, customizable to meet each user’s specific requirements. The flexible design allows users to tailor the layout for optimal space utilization and improved testing efficiency.

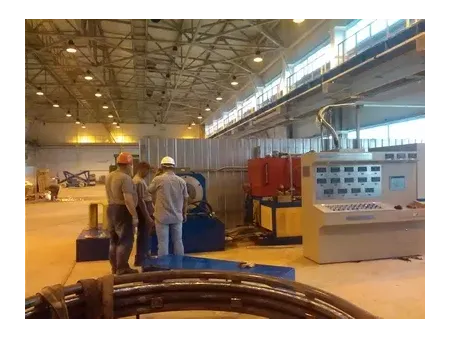

Additional Showcases
