Smart Two Stage Permanent Magnet VSD Screw Compressor Manufacturer

Smart Two Stage Permanent Magnet VSD Screw Compressor

Request a Quote

View All: http://aircomprs.com/1-8-smart-permanent-magnet-vsd-screw-compressor-two-stage.html

Air Displacement (m³/min): 3.5～14.4
Discharge Pressure (MPa/Bar): (0.8/8)/(1.0/10)/(1.2/12)
Power (kW): 22~75 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

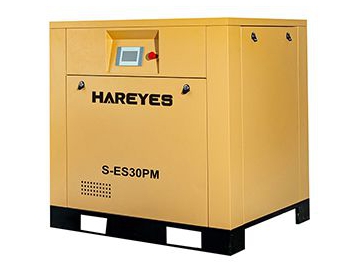

S-ES30PM

Smart Two Stage Permanent Magnet VSD Screw Compressor 22kW/30HP

Air Displacement @ Pressure (M³/min @ MPa/Bar)			Air Displacement @ Pressure (CFM @ PSI)			Power ( kW/HP)	Dimensions LengthWidthHeight (mm)
4.16/0.8/8	4.0/1.0/10	3.5/1.2/12	144/116	141/145	124/174	22/30	11408701120

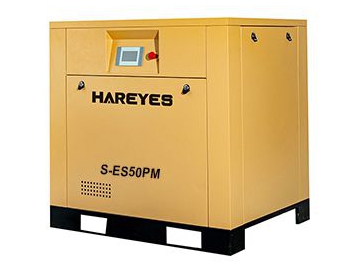

S-ES50PM

Smart Two Stage Permanent Magnet VSD Screw Compressor 37kW/50HP

Air Displacement @ Pressure (M³/min @ MPa/Bar)				Air Displacement @ Pressure (CFM @ PSI)			Power ( kW/HP)	Dimensions LengthWidthHeight (mm)
6.95/0.8/8	6.6/1.0/10	5.9/1.2/12	246/116		233/145	208/174	37/50	13809901220

S-ES75PM

Smart Two Stage Permanent Magnet VSD Screw Compressor 55kW/75HP

Air Displacement @ Pressure (M³/min @ MPa/Bar)				Air Displacement @ Pressure (CFM @ PSI)			Power ( kW/HP)	Dimensions LengthWidthHeight (mm)
11.3/0.8/8	10.2/1.0/10	9.4/1.2/12	399/116		360/145	332/174	55/75	184012901670

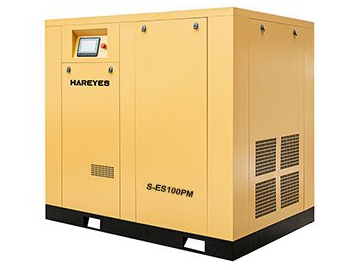

S-ES100PM

Smart Two Stage Permanent Magnet VSD Screw Compressor 75kW/100HP

Air Displacement @ Pressure (M³/min @ MPa/Bar)				Air Displacement @ Pressure (CFM @ PSI)			Power ( kW/HP)	Dimensions LengthWidthHeight (mm)
14.4/0.8/8	13.0/1.0/10	11.6/1.2/12	509/116		459/145	410/174	75/100	184012901670

Model		S-ES30PM	S-ES50PM	S-ES75PM	S-ES100PM
Air Displacement @ Pressure (M³/min @ MPa/Bar)		4.16/0.8/8	6.95/0.8/8	11.3/0.8/8	14.4/0.8/8
		4.0/1.0/10	6.6/1.0/10	10.2/1.0/10	13.0/1.0/10
		3.5/1.2/12	5.9/1.2/12	9.4/1.2/12	11.6/1.2/12
Air Displacement @ Pressure (CFM @ PSI)		144/116	246/116	399/116	509/116
		141/145	233/145	360/145	459/145
		124/174	208/174	332/174	410/174
Cooling Method		Air cooling (water cooling available)
Discharge Temperature (℃)		≤40
Volume of Lubricant (L)		15	22	45	54
Noise Level dB(A)		72±2		75±2
Compression Stage		Two-stage
Drive Method		Direct Drive
Power ( kW/HP)		22/30	37/50	55/75	75/100
Power Supply		380V/50Hz (can be customized as per your voltage and frequency requirements)
Motor Protection Class		IP23
Starting Mode		Variable frequency starting
Dimensions	Length (mm)	1140	1380	1840	1840
	Width (mm)	870	990	1290	1290
	Height (mm)	1120	1220	1670	1670
N.W.	kg	335	480	840	1010
Outlet Diameter (inch)		G1"	G1-1/2"	G2"

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Features

Innovative Horizontal Design
Our compressor features an innovative horizontal two-stage screw main unit with a low center of gravity, minimizing unit vibration and noise. It boasts two compression units, optimized rotor structures, and enhanced transmission efficiency, resulting in a more than 10% increase in air delivery at the same power and pressure.
Dedicated Inverter
With a dedicated inverter for permanent magnet synchronous motors, our compressor achieves stepless speed control, constant-pressure air supply, soft startup, and ensures continuous unmanned operation.
Efficient Cooling System
The compressor is equipped with an efficient cooling system that enhances cooling efficiency and extends the equipment's lifespan.
Intelligent Touchscreen Control
The intelligent touchscreen control system offers a user-friendly interface, enabling smart automatic on-off operation and unattended functionality.

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
