Vertical Two Stage Permanent Magnet VSD Screw Compressor, RE-E Series
Request a Quote
- Air Displacement (m³/min): 7.27～51.0
- Discharge Pressure (MPa/Bar): (0.7/7.0)/(0.8/8.0)
- Power (kW): 37~250 (Customization is available)
We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.
-
RE-E50PM Vertical Two Stage Permanent Magnet VSD Screw Compressor 37kW/50HPAir Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm) 7.40/0.7/7.0 7.27/0.8/8.0 261/102 256/116 37/50 1740*1150*1600 -
RE-E75PM Vertical Two Stage Permanent Magnet VSD Screw Compressor 55kW/75HPAir Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm) 11.9/0.7/7.0 11.7/0.8/8.0 420/102 413/116 55/75 2100*1400*1740 -

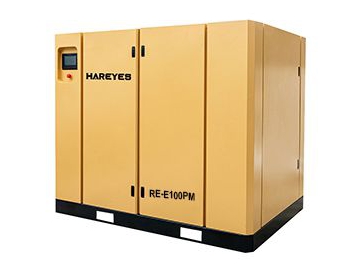

RE-E100PM Vertical Two Stage Permanent Magnet VSD Screw Compressor 75kW/100HPAir Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm) 15.7/0.7/7.0 15.2/0.8/8.0 555/102 537/116 75/100 2100*1400*1740 -
RE-E125PM-ABDS Vertical Two Stage Permanent Magnet VSD Screw Compressor 90kW/125HPAir Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm) 19.0/0.7/7.0 18.8/0.8/8.0 671/102 664/116 90/125 2540*1470*1840 -
RE-E125PM Vertical Two Stage Permanent Magnet VSD Screw Compressor 90kW/125HPAir Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm) 18.0/0.7/7.0 17.7/0.8/8.0 636/102 625/116 90/125 2540*1470*1840 -
RE-E150PM Vertical Two Stage Permanent Magnet VSD Screw Compressor 110kW/150HPAir Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm) 21.7/0.7/7.0 21.5/0.8/8.0 767/102 760/116 110/150 2540*1470*1840 -

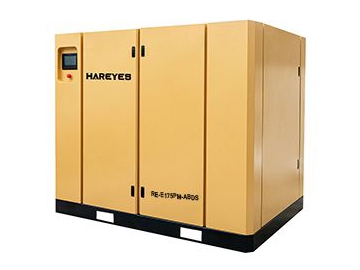

RE-E175PM-ABDS Vertical Two Stage Permanent Magnet VSD Screw Compressor 132kW/175HPAir Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm) 25.2/0.7/7.0 25.0/0.8/8.0 890/102 883/116 132/175 2540*1470*1840 -
RE-E175PM Vertical Two Stage Permanent Magnet VSD Screw Compressor 132kW/175HPAir Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm) 26.1/0.7/7.0 25.9/0.8/8.0 922/102 915/116 132/175 2540*1470*1840 -
RE-E200PM-ABDS Vertical Two Stage Permanent Magnet VSD Screw Compressor 160kW/200HPAir Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm) 31.0/0.7/7.0 30.5/0.8/8.0 1095/102 1078/116 160/200 2930*2040*2140 -
RE-E200PM Vertical Two Stage Permanent Magnet VSD Screw Compressor 160kW/200HPAir Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm) 32.0/0.7/7.0 31.5/0.8/8.0 1131/102 1113/116 160/200 2930*2040*2140
| Model | ||||||||||||||||||
| Air Displacement @ Pressure (M³/min@Mpa/Bar) | 7.40/0.7/7.0 | 11.9/0.7/7.0 | 15.7/0.7/7.0 | 19.0/0.7/7.0 | 18.0/0.7/7.0 | 21.7/0.7/7.0 | 25.2/0.7/7.0 | 26.1/0.7/7.0 | 31.0/0.7/7.0 | 32.0/0.7/7.0 | 36.2/0.7/7.0 | 36.0/0.7/7.0 | 40.8/0.7/7.0 | 40.0/0.7/7.0 | 45.0/0.7/7.0 | 45.3/0.7/7.0 | 51.0/0.7/7.0 | |
| 7.27/0.8/8.0 | 11.7/0.8/8.0 | 15.2/0.8/8.0 | 18.8/0.8/8.0 | 17.7/0.8/8.0 | 21.5/0.8/8.0 | 25.0/0.8/8.0 | 25.9/0.8/8.0 | 30.5/0.8/8.0 | 31.5/0.8/8.0 | 36.0/0.8/8.0 | 35.8/0.8/8.0 | 40.5/0.8/8.0 | 39.7/0.8/8.0 | 44.8/0.8/8.0 | 45.0/0.8/8.0 | 50.5/0.8/8.0 | ||
| Air Displacement @ Pressure (CFM@PSI) | 261/102 | 420/102 | 555/102 | 671/102 | 636/102 | 767/102 | 890/102 | 922/102 | 1095/102 | 1131/102 | 1279/102 | 1272/102 | 1412/102 | 1413/102 | 1590/102 | 1600/102 | 1802/102 | |
| 256/116 | 413/116 | 537/116 | 664/116 | 625/116 | 760/116 | 883/116 | 915/116 | 1178/116 | 1113/116 | 1272/116 | 1265/116 | 1431/116 | 1403/116 | 1583/116 | 1590/116 | 1784/116 | ||
| Cooling Method | Air-cooling (Water-cooling available) | |||||||||||||||||
| Discharge Temperature (℃) | ≤40 | |||||||||||||||||
| Volume of Lubricant (L) | 32 | 54 | 72 | 90 | 125 | 125 | 180 | |||||||||||
| Noise Level dB(A） | 72±2 | 74±2 | 76±2 | 74±2 | 76±2 | 80±2 | 78±2 | 80±2 | 78±2 | 80±2 | 78±2 | 80±2 | 78±2 | 80±2 | 78±2 | |||
| Compression Stage | Two stage | Direct drive | ||||||||||||||||
| Drive Method | Direct drive | Two stage | ||||||||||||||||
| Power ( kW/HP) | 37/50 | 55/75 | 75/100 | 90/125 | 90/125 | 110/150 | 132/175 | 132/175 | 160/200 | 160/200 | 185/250 | 185/250 | 200/275 | 200/275 | 220/300 | 220/300 | 250/350 | |
| Power Supply | 380V/50Hz (can be customized as per your voltage and frequency requirements) | |||||||||||||||||
| Protection class for Motor | IP55 | |||||||||||||||||
| Starting mode | Variable frequency starting | |||||||||||||||||
| Dimensions | L (mm) | 1740 | 2100 | 2100 | 2540 | 2540 | 2540 | 2540 | 2540 | 2930 | 2930 | 2930 | 2930 | 3340 | 3340 | 3340 | 3340 | 3340 |
| W (mm) | 1150 | 1400 | 1400 | 1470 | 1470 | 1470 | 1470 | 1470 | 2040 | 2040 | 2040 | 2040 | 2120 | 2120 | 2120 | 2120 | 2120 | |
| H (mm) | 1600 | 1740 | 1740 | 1840 | 1840 | 1840 | 1840 | 1840 | 2140 | 2140 | 2140 | 2140 | 2440 | 2440 | 2440 | 2440 | 2440 | |
| N.W. | kg | 1150 | 1800 | 1910 | 2450 | 2750 | 2950 | 3100 | 3450 | 3650 | 3900 | 4250 | 4500 | 5300 | 5700 | 5600 | 5900 | 6200 |
| Outlet Diameter (inch/mm) | G2" | G2-1/2" | DN80 | DN80 | DN100 | |||||||||||||
Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.
Features
Advanced Design
Our air compressor features a cutting-edge vertical two-stage screw main unit. This design reduces compression ratios per stage, minimizes internal leaks, and improves volumetric efficiency. With larger rotors, our air compressor significantly enhances operational efficiency when compared to single-stage units, ensuring a high level of free air delivery. The main unit is built for durability, offering an extended lifespan and higher stability.IE4 Permanent Magnet Synchronous Motor
The integration of an IE4 permanent magnet synchronous motor offers superior energy efficiency compared to standard induction motors. The use of variable frequency technology enables a soft startup, reducing the peak current during startup and lowering overall power expenses.Optimal Flow and Pressure Control
Through precise flow and constant pressure control, we reduce energy consumption while maintaining pressure fluctuations within a tight range of ±0.01Mpa. This precision guarantees the consistent delivery of the required free air.Direct-Drive System
Our air compressor employs a split direct-drive system, ensuring high reliability, minimal noise, and straightforward maintenance.Intelligent Control
The fully intelligent control system of our air compressor provides real-time monitoring of critical parameters and dynamic displays of system status.High Efficiency
The vertical two-stage design significantly boosts air production by up to 15% compared to single-stage compression at the same power level, resulting in energy savings of up to 15%. Our VSD air compressors surpass fixed-speed screw compressors, achieving energy savings of 30%-40%.
We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
