AS-P01 Top Labeling Machine (For Flat Products)
Request a Quote
Top labeling machine is designed for applying self-adhesive labels and self-adhesive film onto flat surfaces of various products including books, folders, boxes, cartons, etc. It also has the capability to apply labels on uneven surfaces by simply utilizing a smoothing device. The optional coding machine and industrial inkjet printer can be installed on the labeling head to print the production date, batch number, bar code, and much more on the label. The coding machine can be installed on conveyor belts for printing before or after labeling.
Applications
- Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
- Applicable products: products with flat surfaces and large curved surfaces.
- Applicable industries: printing, stationery, food, daily chemical, electronics, pharmaceutical, etc.

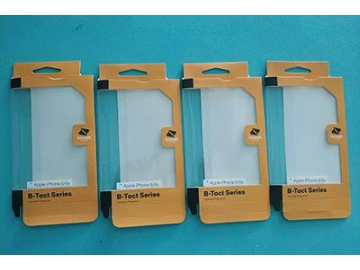

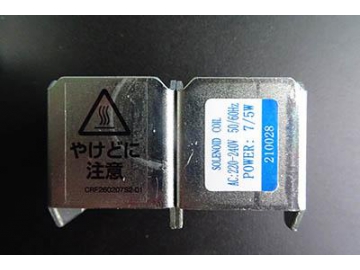

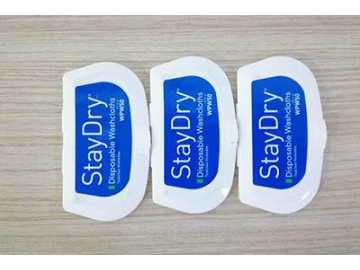

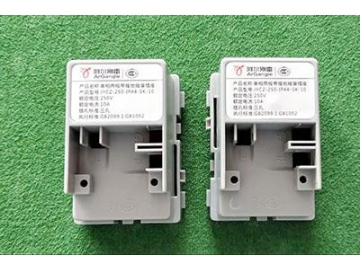

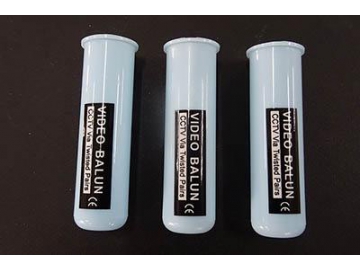

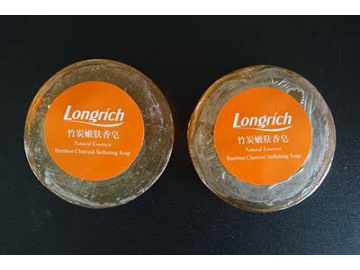

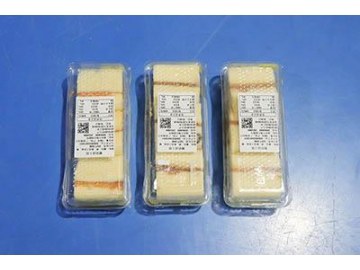

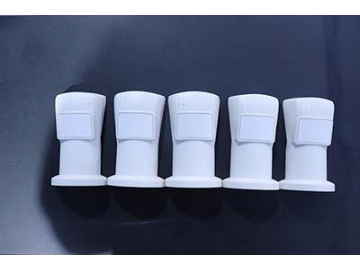

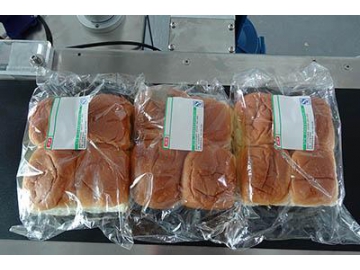

Samples
Specification
| Model | AS-P01 |
| Label stop accuracy | ±1mm |
| Production speed | 60-300 pcs/min |
| Product length | 40mm～400mm |
| Product width | 40mm～200mm |
| Product height | 0.2mm～200mm |
| Label length | 6mm～250mm |
| Label roll inside diameter | Φ76mm |
| Label roll outside diameter | Φ280mm |
| Dimensions (length x width x height) | 1600mm x 780mm x 1400mm |
| Weight | 180Kg |
Details of Top Labeling System
- Photoelectric sensor:

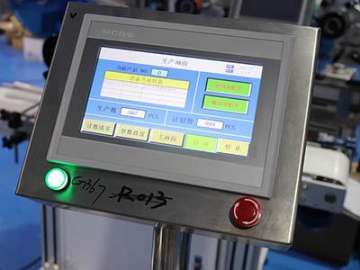

The labeling machine is equipped with a photoelectric sensor made by Sick which features high precision and high reliability. - Touch screen:

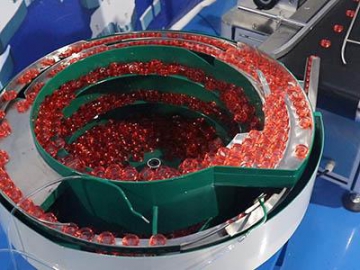

Controlled by PLC, the interface is convenient to use. With just a tap of its touch screen, you can easily access various functions and parameters for your product needs. - It can apply a vibration plate to realize automatic loading to improve the productivity and reduce labor costs according to your requirements.

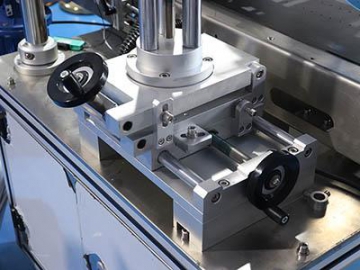

- The 6DOF adjustable seat enables quick changeover between different products.
