E3 Series High-speed Diesel Engine (353~1308kW)

Request a Quote

View All: http://highspeedengine.com/1-e3-series-high-speed-diesel-engine.html

Industrial Diesel Engine, Environmentally Friendly
Power: 353~1308kW
rpm: 1500

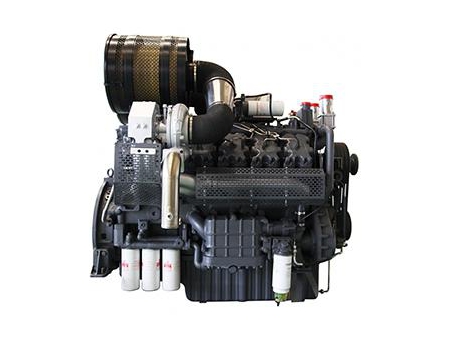

The E3 series high-speed diesel engine uses a WAPS-R electronic control HPCR (High Pressure Common Rail) fuel injection system to precisely control the fuel timing, amount and pressure for a given engine operating condition. The ECU (Engine Control Unit) connects the engine and outside devices and achieves centralized control. The power range of the diesel engine is 353~1308kW, ideal for power station, pump units and other applications. Wandi’s E3 series high-speed diesel engine delivers a strong power, compact structure and easy maintenance.

Features

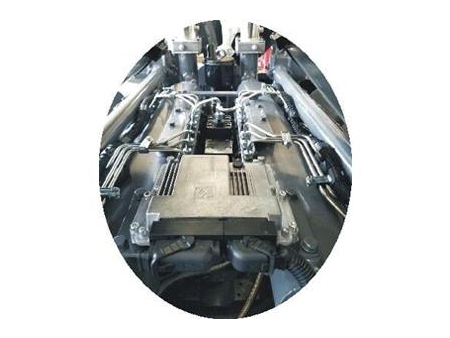

A WAPS-R electronic control HPCR fuel injection system is used, consisting of the fuel pump, high pressure rail and fuel injector. In combination with an ECU, this industrial diesel engine will optimize different engine operating conditions, precisely control the fuel timing, amount and pressure and guarantee the engine’s dynamic performance and economical operation.
An efficient high flow exhaust gas turbocharger utilizes air charge inter-cooling technology.

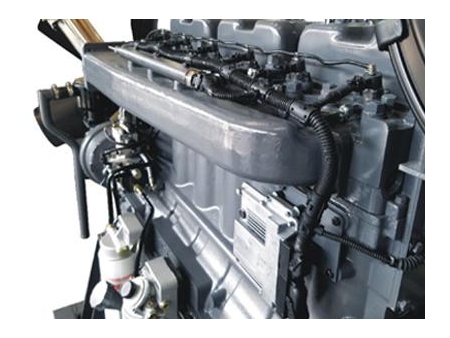

A newly designed cylinder head and valve mechanism enhances the circulation air input and improves the intake swirl. The combustion chamber is specially designed to increase the combustion efficiency and decrease harmful gas discharge.
The fuel injector is vertically mounted to uniformly distribute fuel inside the combustion chamber.
The electronic control HPCR fuel injection system features technological potentials to satisfy the higher discharge requirements. The ECU connects the engine to outside equipment to achieve central control.
The fuel injection system, supercharger, water pump, fuel pump, fuel injector, fuel cooler, cylinder head, piston, cylinder sleeve and other key components are all provided by trustworthy and reliable diesel engine component suppliers to ensure the product quality.

Parameters


Model	Bore×Stroke (mm)	Displacement (L)	rpm	Power (kW)	Min. BSFC (g/kW·h)	Oil Consumption (g/kW•h)	Exhaust Gas Temperature（℃）
WD145E3TAD35	138×160	14.5	1500	353	198	≤0.48	≤700
WD145E3TAD38	138×160	28.7	1500	382	198	≤0.67	≤600
WD145E3TAD40	138×160	28.7	1500	402	198	≤0.67	≤600
WD287E3TAD43	138×160	28.7	1500	432	198	≤0.67	≤600
WD287E3TAD48	138×160	28.7	1500	482	198	≤0.67	≤600
WD287E3TAD50	138×160	28.7	1500	526	198	≤0.67	≤600
WD287E3TAD56	138×160	28.7	1500	562	198	≤0.67	≤600
WD287E3TAD58	138×160	28.7	1500	588	198	≤0.67	≤650
WD287E3TAD61	138×160	28.7	1500	628	198	≤0.67	≤650
WX287E3TAD68	138×160	28.7	1500	698	200	≤0.70	≤650
WX287E3TAD73	138×160	28.7	1500	738	200	≤0.70	≤700

WD180E3TAD61	152×165	18	1500	608	196	≤0.48	≤680
WD327E3TAD68	145×165	32.7	1500	698	196	≤0.48	≤650
WD327E3TAD73	145×165	32.7	1500	738	196	≤0.48	≤650
WD327E3TAD78	145×165	32.7	1500	788	196	≤0.48	≤650
WD327E3TAD82	145×165	32.7	1500	828	196	≤0.48	≤650
WD327E3TAD88	145×165	32.7	1500	898	196	≤0.48	≤650
WD327E3TAD100	145×165	32.7	1500	1038	196	≤0.48	≤650
WD360E3TAD110	152×165	35.9	1500	1128	196	≤0.48	≤680
WD360E3TAD120	152×165	35.9	1500	1218	196	≤0.48	≤680
WD360E3TAD130	152×165	35.9	1500	1308	196	≤0.48	≤680

Wuxi Power Engineering Co., Ltd. (Wandi) has more than six decades of experience in large marine and land diesel engines. Known for quality, durability and reliability, we are committed to the idea that every component, piece and part of the engine contributes to the overall performance. As a leader of high speed power solutions in China, we are able to offer the most extensive of high speed engines for power generation. Wandi diesel engines are specially designed for marine applications, which are widely used by many boating and marine industry manufacturers.
