Power Steering Motor
Request a Quote
Specifications

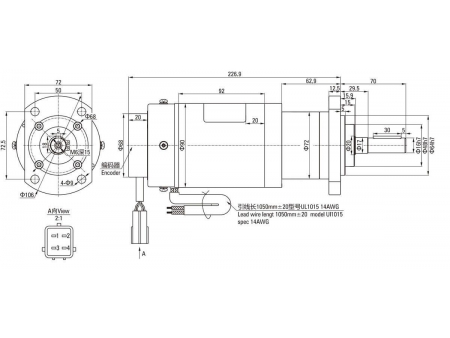

Model | Z100D550-24A1-30S | Brush Life | 1200h |
Rated Voltage | 25V DC | Electrical Strength | 660V/S |
Rated Power | 550W | Insulation Class | F |
Rated Current | 30A±10% | Protection Grade | IP20 |
Rated Speed | 3000rpm±10% | Gearhead Model | ZD-ZH180-25-001 |
Rated Torque | 1.75N.m | Gear Ratio | 25K/17K |
No-load Current | ≤6A | Brake Voltage | 24V DC |
No-load Speed | 3500rpm±10% | Brake Torque | 6N.m |
Work Duty | S2(45min) | Ambient Temperature | -10℃~ 40℃ |
Insulation Resistance | >20MΩ | Noise | < 60 |
Specifications
Model | Z90DPN24400-32S-BM | Protection Grade | IP20 |
Rated Voltage | 24V DC | Gearbox Specification | 82PN33.92K |
Rated Power | 200W | Reduction Stage | 2 |
Rated Current | 24A±10% | Output Shaft Rotation Direction of Gearbox and Motor | same |
Rated Speed | 3200rpm±10% | Bearing Type | Ball Bearings |
Rated Torque | 1.27N.m | Gearbox Structure | Integrated |
No-load Current | ≤3.5A | Transmission Efficiency | 81% |
No-load Speed | 3600rpm±10% | Rated Output Torque | 35N.m |
Work Duty | S2(10min) | Max. Instantaneous Torque | 1.5 times the output torque |
Insulation Resistance | >20MΩ | Ambient Temperature | -10℃~ 40℃ |
Brush Life | 2000h | Noise | < 60dm (L=100cm) |
Electrical Strength | 660V/S | ||
Insulation Class | B |
Specifications
Model | Z90DPN24200-32S | Insulation Class | B |
Rated Voltage | 24V DC | Protection Grade | IP20 |
Rated Power | 200W | Gearbox Specification | 90PN32K |
Rated Current | 13A±10% | Reduction Stage | 2 |
Rated Speed | 3200rpm±10% | Output Shaft Rotation Direction of Gearbox and Motor | same |
Rated Torque | 0.597N.m | Bearing Type | Ball Bearing |
No-load Current | ≤3.5A | Gearbox Structure | Integrated |
No-load Speed | 3600rpm±10% | Transmission Efficiency | 94% |
Work Duty | S2(10min) | Max. Torque for Gearbox | 17.954N.m |
Insulation Resistance | >20MΩ | Max. Instantaneous Torque for Gearbox | 2 times the rated output torque |
Brush Life | 2000h | Ambient Temperature | -10℃~ 40℃ |
Electrical Strength | 660V/S | Noise | < 60dm (L=100cm) |
Insulation Class | B |
