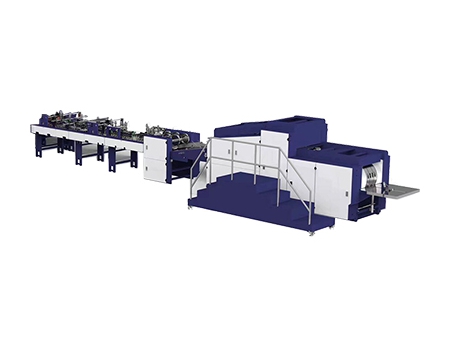

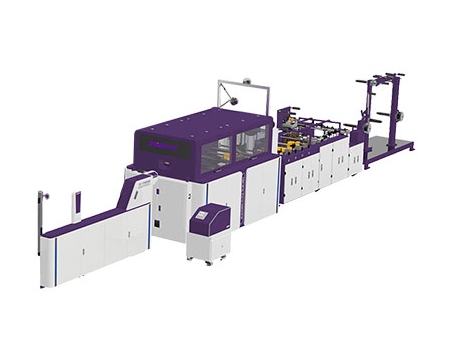

Roll-fed J-cut Paper Bag Making Machine with Twisted/ Flat Handles and Top Over-folding

Roll-fed J-cut Paper Bag Making Machine with Twisted/ Flat Handles and Top Over-folding
Roll-fed J-cut Paper Bag Making Machine with Twisted/ Flat Handles and Top Over-folding
Roll-fed J-cut Paper Bag Making Machine with Twisted/ Flat Handles and Top Over-folding
Request a Quote

The J-cut paper bag making machine, for bags with twisted or flat handles is a type of innovative machinery, streamlining the production of paper bags with handles folded inside. Starting with paper fed from a reel, the paper bag machine skillfully forms handles and attaches them to the paper. Each step is automated, from handle making and pasting to the precise cutting and folding of the paper sheet. The machine then efficiently applies glue, shapes the bag, and finishes with the bottom folding and gluing, all in one smooth, synchronized process. This fully automated bag making machinery not only enhances efficiency but also significantly cuts down on labor costs, making it an ideal solution for producing quality paper bags.

Parameters
Model
ZD-FD280QZ
ZD-FN380QZ
ZD-FD550QZ
Paper sheet width 430-890mm 550-1050 mm 670-1510mm
Max. diameter of roll paper Ø1500 mm Ø1500 mm Ø1500 mm
Inner diameter of paper core Ø76mm Ø76mm Ø76mm
Paper weight 100-200g/m² 100-200g/m² 100-200g/m²
Finished bag width 150-280mm 180-380 mm 240-540mm
Paper tube length 210-530mm (incl. handle height) 230-655mm (incl. handle height) 380-710mm (incl. handle height)
Bag bottom width 50-150mm 70-200 mm 80-240mm
Top folding width 40-60mm 40-60 mm 40-60mm
Max. speed 100 bags/min 100 bags/min 80 bags/min
Working air pressure 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
Total power 380V 3P4L60kW 380V 3P4L61kW 380V3P4L64kW
Weight 24500kg 26500kg 28500kg
Overall dimensions 21*6.7*3m 21*6.8*3m 24.6*7.2*3m
Options of Paper Bag Handles

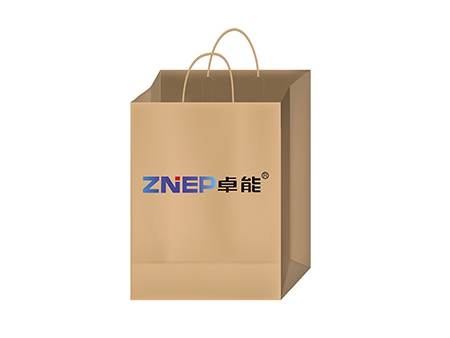

Twisted rope handle Q3 Q4
Handle rope height 90-120 mm 90-120 mm
Handle rope diameter Ø3-6 mm Ø3-6 mm
Handle patch length 152 mm 190 mm
Handle patch width 35-50 mm 35-50 mm
Handle rope distance 76 mm 95 mm
Paper patch roll diameter Ø1200 mm Ø1200 mm
Paper patch roll width 70-100 mm 70-100 mm
Paper patch gram 80-150 g/m² 80-150 g/m²
Flat handle B1 B2
Paper gram for handle 100-130 g/m² 100-130 g/m²
Flat handle width 12 mm 15 mm
Flat handle height 100 mm 100 mm
Flat handle distance 76 mm 95 mm
Diameter of reel paper for handle Ø1200 mm Ø1200 mm
Paper patch gram 100-150 g/m² 100-150 g/m²
Paper patch roll diameter Ø1200 mm Ø1200 mm
Handle patch length 152 mm 190 mm
Handle patch width 35-50 mm 35-50 mm

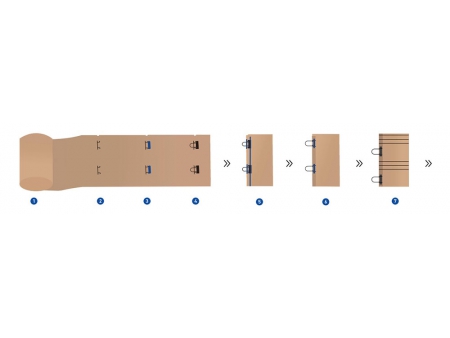

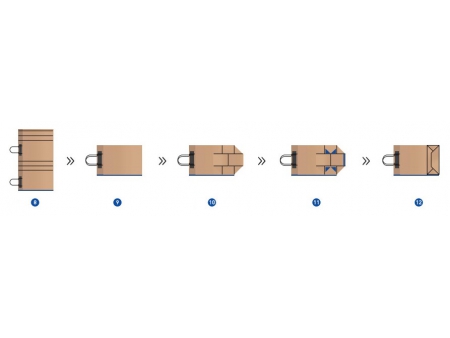

Production Process
  • Paper Roll Feeding
  • J Cutting
  • Handle Gluing
  • Handle Pasting
  • Gluing/Paper Cutting
  • Top Folding
  • Gusset Creasing
  • Side Gluing
  • Tube Folding
  • Bottom Folding
  • Bottom Gluing
  • Bottom Sealing
Machine Configurations
  • Feeding Unit

    The feeding unit is designed for efficiency and ease of use. The roll paper is secured onto an air expanding shaft, then fed into the machine using a swing arm with an advanced hydraulic lifting system. This unit is equipped with an alarm system that activates when paper replenishment is necessary. Furthermore, it incorporates an automatic web guide and uniform tension control, ensuring the paper is fed into the machine with optimal alignment and smoothness. Simplifying the roll change process, a button control allows for easy and quick replacement, enhancing overall productivity that sounds an alarm when paper needs replenishing.

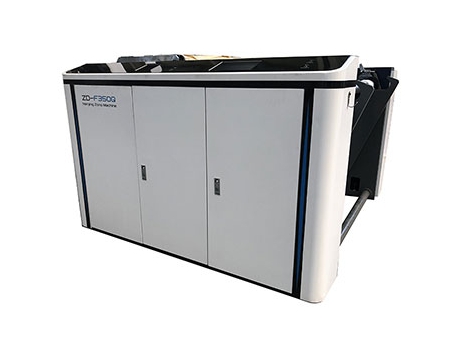

  • Handle Making Unit

    The handle making unit is designed for effective and accurate handle making. It starts by feeding two rolls of patch paper and one roll of paper rope into the machine. The paper rope is then glued to the patch paper, using both water and hot melt adhesives for a strong bond. After the gluing process, the combined material is compressed to ensure the handles are firmly attached. The final step involves cutting the handles to the correct size and transferring them to the handle patching unit, preparing them for attachment to the bags.

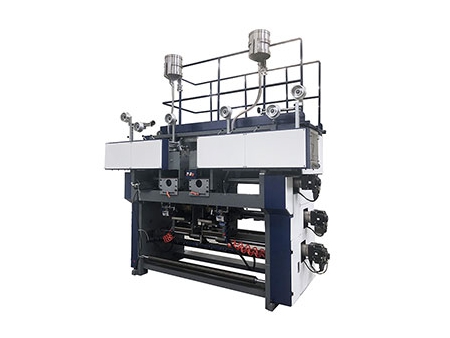

  • Handle Pasting Unit

    The handle pasting unit is designed to paste handles to paper bags with precision and efficiency. After cutting the handles that were made previously, they are accurately placed at the designated position on the paper bag. The unit then applies a water-based adhesive to bond the handle to the bag. Once attached, the handles are firmly pressed onto the bag surface, ensuring a secure hold. This process is completed before the bag enters the pre-creasing stage, preparing it for the final shaping in the forming unit.

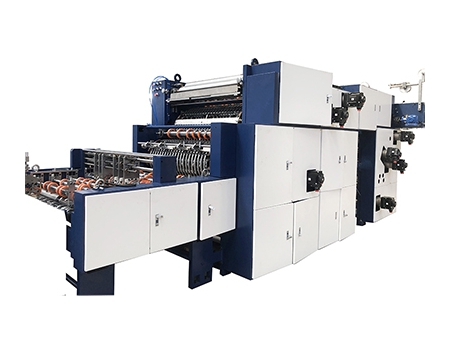

  • Paper Cut and Top Folding Unit

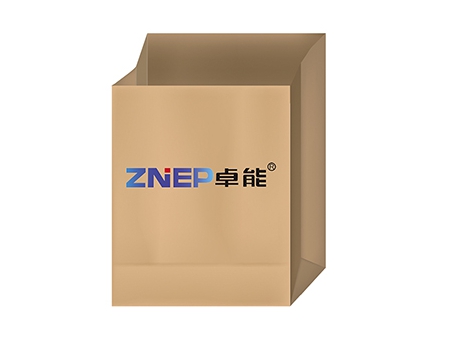

    This unit starts by cutting the paper into individual pieces based on the pre-set tube length parameters. Following the cutting, the unit applies glue to the top edge of each paper piece. The final step involves neatly folding over the top edge, ensuring a clean and secure fold. This process is critical for preparing the paper for the next stages of bag assembly.

  • Bag Forming Unit

    In the bag forming unit, the process begins with applying glue along the sides of the paper. This is followed by precise folding to create a paper tube. These tubes are then transferred to the drum mechanism, where they are opened into a four-cornered bottom shape, assisted by a vacuum suction system for accuracy. The final steps involve applying glue to the bottom, sealing it, and shaping the bag into a perfect square form.

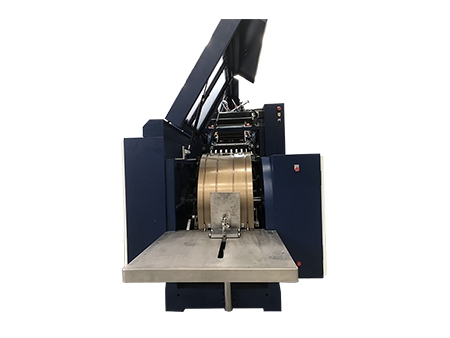

  • Bag Collecting Unit

    The bag collecting unit plays a crucial role in the final stages of paper bag production. This unit takes the formed bags, compresses them for consistency, and then outputs the finished bags. An integrated counting system displays the number of bags processed, providing valuable information for quality control and production management.
