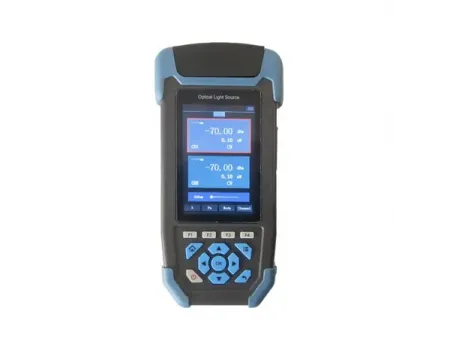

BOU350 Series Optical Laser Source
Request a Quote
Laser Source is part of the toolbox essentials working in pair with optical power meters to measure the optical attenuation and eliminate the faults when telecom technicians install or maintain optical fiber networks. Tribrer BOU350 series laser sources are well designed for first-class versatility -- it offers stabilized laser signal, as well as various wavelengths. With a rugged design, Tribrer BOU350 series laser sources are built for top ruggedness and versatility, perfect for the harshest test conditions to verify the continuity and evaluate fiber link transmission quality.
- 1~3 wavelengths output from one port
- High stabilization, build in optic isolator
- 270, 1000, 2000 Hz Tone
- Auto Wave ID output (should work with Tribrer optical power meter)
- Energy save mode
- Power autonomy of 16 hours
- One-year warranty and Three-year recommended calibration interval
| Model | ||||
| Central Wavelength(nm) | 850 | 1300 | 1310 | 1550 |
| Stabilization* | ±0.05dB / 1 hour; ±0. 1dB / 8 hours | |||
| Output Power | > - 6dBm @ 1310nm/1490nm/1550nm/1625nm / > - 10 dBm @ 850nm/1300nm | |||
| Modulation | 270Hz, 1KHz, 2KHz | |||
| Connector | FC/PC (or customize) | |||
| Auto Power Of | No operation in 10 minutes (can be canceled), Low battery energy | |||
| Battery Charge | Yes | |||
| Power Supply | AA * 2 batteries or AC/DC power supply adapter | |||
* After 5 minutes warm - up, 20±3℃, CW, FC connector, with optic isolator
General Specifications| Size(H*W*D) | 160mm * 75mm * 32mm |
| Weight | About 180g |
| Storage Temperature | -20 -- 60, < 90%RH |
| Operating Temperature | - 10 -- 50, < 90%RH |
| Standard | Optional |
| Carrying bag*1 | About 180g |
| User’s manual*1 | |
| Calibration certification*1 |
Note: Please contact tribrer for availability and lead time.
