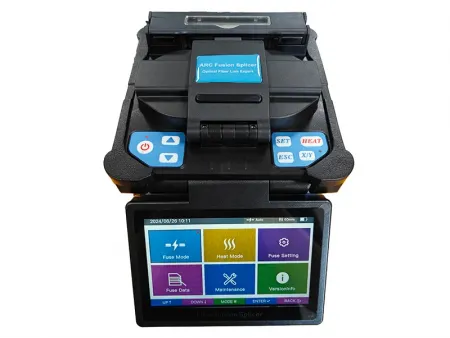

6481 series optical fiber fusion splicer is commonly used for the connection and protection of all kinds of optical fiber, such as communication optical fiber cable and erbium-doped optical fiber. The splicer’s rich functions and ultra-low splice loss make it adaptive to fiber splicing in various environments. Multiple fusion modes and heating modes are available to meet customers’ diverse demands. Fiber loading becomes more convenient and accurate thanks to the high precision ceramic V-groove, which is easy for clean and maintenance. The splicer supports dual-directional fusion. The monitor is a touch screen with GUI for smooth operation. The modular pluggable lithium-ion battery with large-capacity ensures long-time field operations. The auto environmental compensation system greatly improves adaptability of the splicer to extreme environments to ensure your work smoothly and continuously.

Features
  • Compact, light weight
  • 7s fast splicing, 18s highly efficient heating
  • 320 times image magnification, 5mm fusion for ultra-short cleave length
  • 300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records/64 images storage
  • Ceramic presser foot, ceramic V-groove, all-in-one fixture
  • Dual-directional fusion, auto fusion, intelligent heat shrink
  • USB and SD card interface, auto update by USB
  • Built-in modular lithium-ion battery, at least 220 times of splicing and heating
  • GUI and touch screen, easy to operate
  • Dust-resistant, water-resistant, shock-resistant

All-in-one fixer
The all-in-one fixture meets fusion demands of multiple optical fibers, jumpers and rubber-insulated wires with a cladding diameter of 80~150 μm.

Graphical interfaces and touch screen
Operators can set up the splicer and get relevant information easily as 6481 has been designed by new GUI and touch screen

Intelligent heat shrink
The heater won’t work until the fiber is detected by the embedded sensor to avoid scalding.

Pluggable lithium-ion battery of large-capacity
The built-in pluggable lithium-ion battery with large capacity can satisfy all working demands(220 times of splicing and heating normally).

Ceramic V-groove and ceramic presser foot
Ceramic V-groove makes the placement and cleaning of optical fibers more accurately and easily.

Carrying
The carrying case is light and can be used as a working bench.

Applications
Characterized by compact design, easy operation and carrying as well as ergonomic structure, 6481 optical fiber fusion splicer makes your work easier even with short fiber. The splicer can be widely used in engineering construction of all types of fiber optic cables, line maintenance, emergency repair, production testing and research of fiber optic devices and teaching in research institutes.

Specifications
Model 6481A Optical Fiber Fusion Splicer 6481B Optical Fiber Fusion Splicer
Motor qty. 6 4
Alignment method Cladding alignment, Core alignment
Applicable fibers Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.
Optical fiber diameter Cladding: 80~150 μm, coating layer: 0.1~3mm
Cleave length 5~16mm (coated optical fiber diameter ≤250μm); 10mm (coated optical fiber diameter: 0.25~3mm)
Splice loss (typical) 0.02dB (SMF); 0.01dB (MMF); 0.04dB (DSF); 0.04dB (NZDSF) 0.03dB (SMF); 0.02dB (MMF); 0.05dB (DSF); 0.05dB (NZDSF)
Return loss Better than 60dB
Splicing time (typical) 7s (Fast mode)
Heating time (typical) 18s (60mm protection sleeve)
Tension 1.96~2.25N
Protection sleeve 60mm, 40mm and a series of protection sleeves
Graphical display High-performance 4.3-inch LCD
Magnification time 320 times/88 times, 700 times 320 times/88 times
Fusion records 10000 groups/64 images 10000 groups
Battery capacity 11. 1V, 6800mAh
Battery operating life Cycle charging: 300~500 counts, can be replaced by customers
Electrode operating life Typical: 4000 counts, can be replaced by customers
Construction lighting Built-in lights with high-brightness and wide lighting area
Working environment Temp: -10~50C; Hum: 0~95%RH, height above sea level: 0~6000m
Operation interfaces GUI
External power AC: 100~240V, 60Hz, 0~1.5A; DC: 10~15V
Port USB / SD (or customize)
Dimensions 120mm (W)×130mm (H)×154mm (D) (without rubber anti-vibration pad)
Weight 1.8kg (no battery), 2.1kg (with battery) 1.7kg (no battery), 2.0kg (with battery)
Dimensions 120mm (W)×130mm (H)×154mm (D) (without rubber anti-vibration pad)
Weight 1.8kg (no battery), 2.1kg (with battery) 1.7kg (no battery), 2.0kg (with battery)
