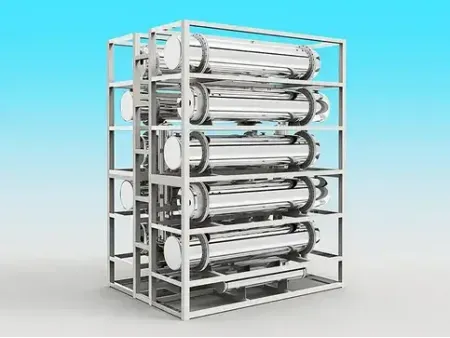

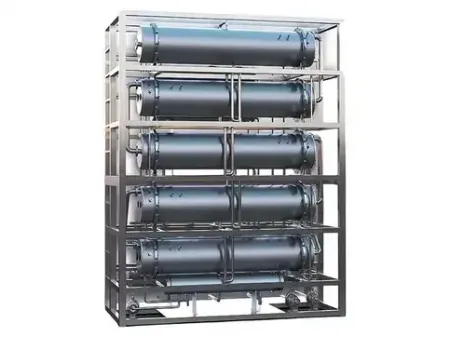

Multi-Effect Thermo-Compression Distillation Unit

Our multi-effect thermo-compression water distiller is designed in compliance with FDA and cGMP requirements, specifically for pharmaceutical applications that demand high-purity water and energy efficiency. The water treatment system can be customized to meet individual project needs.

Process Description

This water distiller utilizes advanced heat recovery and evaporation technologies to efficiently convert raw water into pure steam. Through high-efficiency evaporation, steam recycling, and multi-stage steam-water separation, the system maximizes energy utilization while minimizing wastewater discharge. The result is superior operational performance with notable environmental benefits.

Specifications

Type	Multi-Effect Thermo-Compression Distillation Unit
Steam Consumption (kg per ton of distilled water)	135
Power Consumption (kWh per ton of distilled water)	1.6
Total Energy Consumption (RMB per ton of distilled water)	33.6
Final-Effect Steam Recovery	Yes
Maintenance Cost	Low
Return On Investment	﹤ 2years
Floor Area (mm) (5 Ton Capacity)	4600×180000×4800

Features

Energy-saving and high efficiency: The integrated thermal compressor significantly reduces additional power consumption and boosts overall energy efficiency.

Wide application range: Standard production capacity ranges from 1 to 60 tons/hour, accommodating various plant sizes and manufacturing needs.

Reliable water quality: The advanced steam-water separation system operates effectively even with lower-quality feed water, reducing endotoxin formation. The evaporator runs at low pressure and temperature, ensuring safe and stable operation.

Long service life: A modular design combined with SS316L stainless steel construction ensures durability and operational stability, with an expected service life of over 30 years.

Exceptional water quality: Produced water consistently exceeds the standards of China GMP, United States Pharmacopeia (USP), and European Pharmacopoeia (EP), delivering high-purity water for pharmaceutical, chemical, and related industries.
