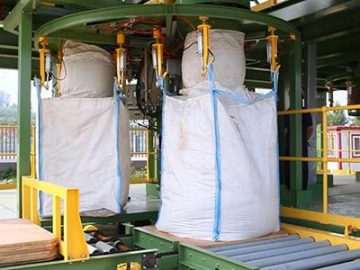

Bulk Bag Filling Packaging Machine

Bulk Bag Filling Packaging Machine
Bulk Bag Filling Packaging Machine
Bulk Bag Filling Packaging Machine
Request a Quote

Application

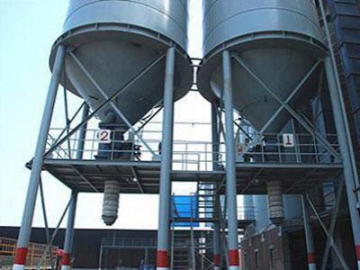

Bulk bag filling packaging machine is used to load and unload bulk cement and other powder materials. This machine can be erected at the bottom of cement hopper to load material of tank shape container on truck, train or ship.

Applicable materials
Cement, lime powder, fly ash, gypsum powder, zeolite powder and so on.

Parameters
Filling head expansion distance 1600 (mm)
Filling head expansion speed 8(m/min)
Hoist Power 0.8 kw , voltage 380V(AC)
Fan Power 0.55KW, voltage 380V(AC), air pressure>1.7kPa
Signal pressure of pressure controller 0.7-1.7 (KPa)
Discharge valve electric push rod Pushing force 300(kg), stroke 200(mm), speed 42(mm/s), power0.37kw
Dust collecting air volume 40m3/min
Weight 1200 (kg)
Overall dimensions(L*W*H)mm 3430*900*3526-5126
Parameters
Filling capacity 100 t/h
Filling head expansion speed 1600 (mm)
Hoist 8(m/min)
Filling head expansion distance Power 0.8 kw , voltage 380V(AC)
Fan controller Power 0.55KW, voltage 380V(AC), air pressure>1.7kPa
Signal pressure of pressure controller 0.7-1.7 (KPa)
Discharge valve electric push rod Pushing force 700(kg), stroke 200(mm), speed 50(mm/s), power 0.75kw
Dust collecting air volume 20-40m3/min
Weight 700 (kg)
Overall dimensions(L*W*H)mm 3115*900*2860-4460
Advantages
  • Filling head is retractable thus it is suitable for loading and unloading in different vehicle types and positions.
  • The machine is safe, reliable and has high degree of mechanization. It can reduce dust pollution, improve working environment, decrease labour intensity and increase the productivity.
  • Automatic material level indication, control device and dust gas port solve the overflow and dust flying problems while loading.
