Sand Washer Machine

Request a Quote

View All: http://hbminingplant.com/4-4-sand-plant-wet-sand-maker.html

Application

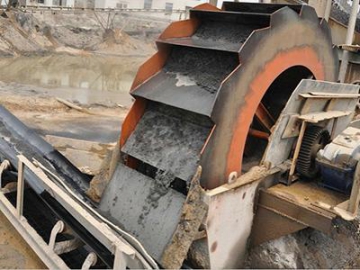

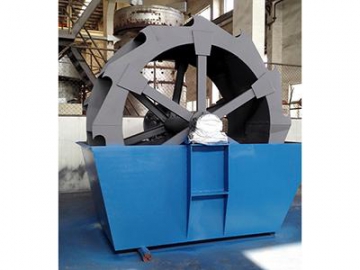

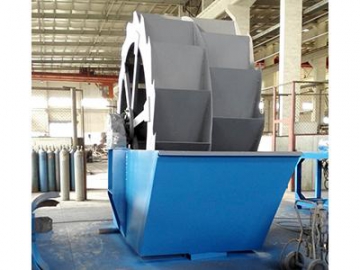

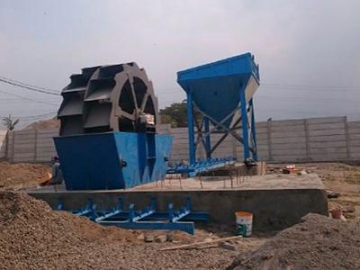

The sand washer machine is effective when paired with sand making machines for washing and separating stone powder and dust from sand. Sand washer machines are a specific type of wheel and bucket washer machine, and can be widely used in construction sites, gravel sites, glass plants, power stations, concrete sites, etc.

Applicable materials
Limestone, pebble, mountain stone, bluestone, cobble, weathered sand, basalt, granite, quartz, diabase, quartz sand, natural sand, machine-made sand, river sand, etc.

Parameters

Model	XSD2610	XSD2816	XSD3016	XSD3620
Screw diameter (mm)	2600	2800	3000	3600
Feeding size (mm)	≤10	≤10	≤10	≤10
Production capacity (t/h)	20-50	30-70	50-100	80-150
Motor type	Y160L-8	Y180L-8	Y200L-8	Y225S-8
Power (kW)	7.5	11	15	18.5
Water consumption (t/h)	10-30	10-40	10-60	20-110
Weight (t)	2.7	5.5	6.1	9.7
Overall dimension (L×W×H) (mm)	3254×2060×2622	3810×2820×2883	3810×2820×3083	4456×2479×3688

Features

Impellers: reasonable structure, high cleanliness, large handing capacity, low power.
Transmission devices: isolated from water and materials with water, avoiding bearing damage because of flooding, sand and contaminants.
Quality screen mesh: made from wear-resistant material to prolong the service life.
Quality bearing: made by well-known bearing manufacturer in China, like ZWZ or SKF.

Related
sand washing plant, stone washing, gravel washing
