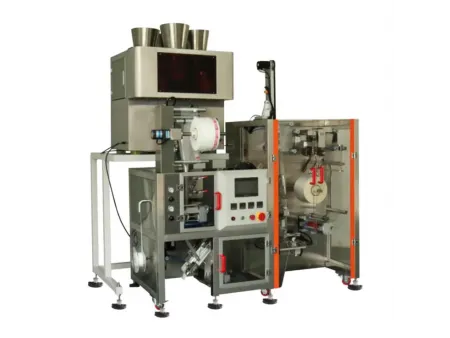

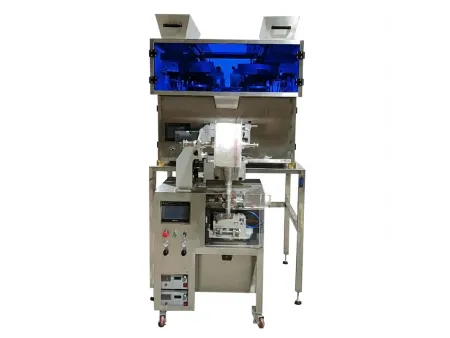

LQ-NT-1

Tea packaging machine for packing tea leaves into pyramid or flat tea bags

Our tea bag packaging solution efficiently packs tea leaves into either pyramid or flat tea bags. It handles a variety of products, including broken leaf tea, ginseng essence, diet tea, wellness tea, medicinal tea, tea leaves, and herbal beverages. This packaging system is capable of processing different types of tea in a single bag, making it ideal for businesses looking to enhance their tea packaging process.

Main Components

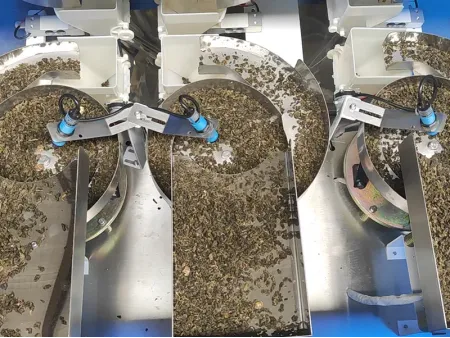

  • Electronic Weighing System
  • Bag Sealing Device
  • Film Feeding Device
Specifications
Working Speed Approximately 60 bags/min
Inner Bag Film 120mm, 140mm, 160mm, 180mm
Bag Type Pyramid bag or flat bag
Sealing Method Ultrasonic
Weight Range 0.5-20g
Filling Accuracy ±0.2 grams/bag (depending on the coffee material)
Weighing System Weigher
Max. 6 heads weigher
Compressed Air 0.4-0.6 MPa, 150L/min
Power Supply 220V, 50Hz, 1Ph, 1.5kW
Weight 420kg
Overall Dimensions 1040mm×1313mm×2015mm
Features
  • Easily switch between flat and triangular packaging bags by just pressing one single button
  • Capable of packing up to 3000 bags per hour, depending on the material
  • Compatible with packing film that includes a line and tag
  • The optional electronic weighing system tailored to the characteristics of the materials. Suitable for single materials, multi-materials, and irregular-shaped materials. Each weighing system can be independently controlled
  • High-precision turntable metering mode significantly improves production efficiency
  • Equipped with a touch screen, PLC, and servo motor, allowing for comprehensive setting functions and maximum operational flexibility to adjust various parameters as needed
