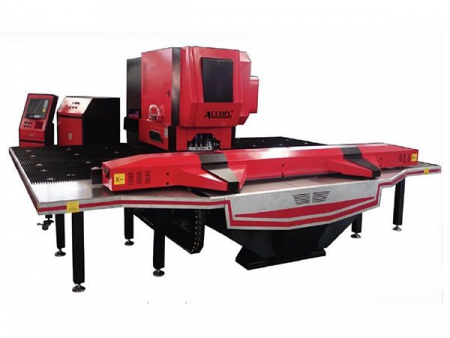

Mechanical CNC Turret Punch Press TC-MAX1250
Request a Quote
By offering the choice between of our well known TC-H series machines classical thick-turret style, Accurl proudly offers a full range of punching solutions both in performance and price range.
The user friendly Siemens 808D CNC system offers everything you need to fit the high demands in contemporary punching. The high speed control, fast processing and intuitive user interface results in an innovative system capable of handling simple as well as complex tasks. From the initial idea to the production of parts, the T Siemens 808D CNC system is your ideal partner.
Standard Equipments
- 4 Axes CNC System
- Siemens 808D CNC unit, servo motors and drivers
- Rexroth and HL hydraulic unit
- 16 Stations Turret 6 A Stations 4 B Stations 2 C Stations 4 D Station
- Repositioning of Clamps
- Automatic reference
- CAD/CAM program
- Automatic Clamping
New Drive Ram Mechanism
Metalix CNCCAD CAD/CAM software offersan integrated system cover to the user whichincludes the complete cycle of CNC operation.
Specifications
| Item | Unit | TC-MAX1250 |
| Nominal Force | kN | 250 |
| Max. Sheet Thickness | mm | 6.35 |
| Max. Tool Size | mm | Φ88.9 |
| Max. Sheet Size (One-time repositioning) | mm | 1250×2500 |
| Punching Accuracy | mm | ±0.1 |
| Max. Hit Rate | h.p.m | 360 |
| Ram Stroke | mm | 30 |
| Number of Tool Stations | 20 | |
| Quantity of Control Shaft | pcs | 4(X, Y, T, C) |
| Machine Weight | kg | 11000 |
| Overall Dimensions | mm | 4800×2600×2000 |

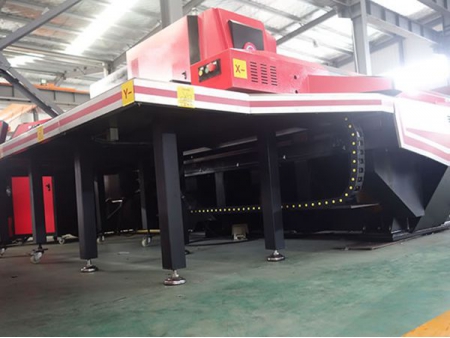

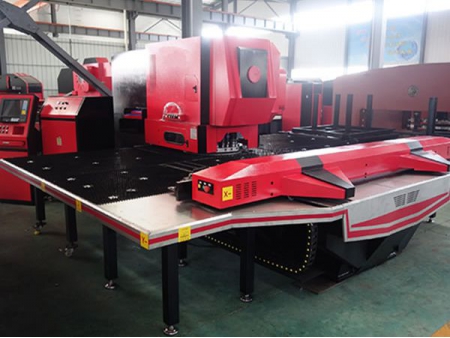

Detailed Pictures
