CNC Turret Punch Press
Request a Quote
NCM-SC
Automatic punching machine for hole punching and notching prior to metal door frame formation

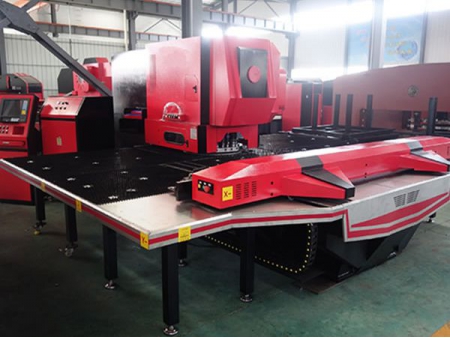

NCM-SC CNC turret punch press is designed for punching and forming the holes in various steel and stainless steel door frames, as well as for notching before frame forming. It has a maximum capacity of 46 tool stations, and the maximum punching frequency is 2300 hpm. It can accurately punch and form various hole positions, including lock holes, installation holes, etc., or be used for notching before frame forming.
Applications

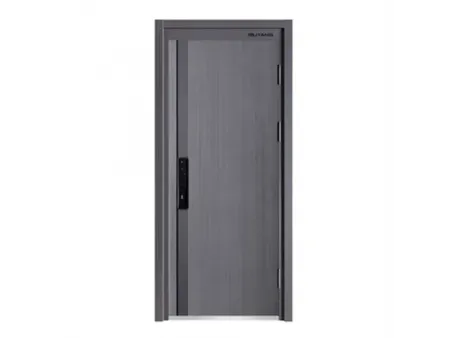

- Security doors
- Fire-rated doors

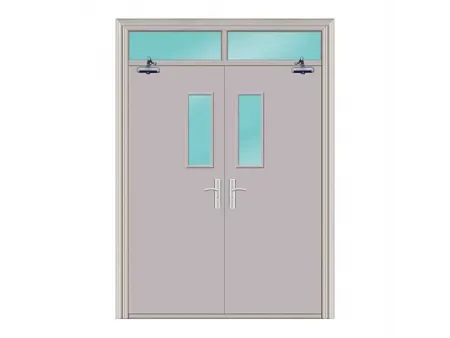

- Healthcare/hospital doors
- Cleanroom doors
Technical Parameters
| Nominal force | 300kN |
| Punching frequency | 2300hpm |
| Sheet metal size | 5000*1250/5000*1500mm |
| Maximum punching diameter at one time | 88.9mm |
| Sheet thickness | ≤6.35mm |
| Processing accuracy | ±0.1mm |
| Feeding speed | ≤110m/min |
| Tool stations | 32 |
| Turret rotation speed | 30rpm |
| CNC axis number | 5 |
| Main motor power | 27kW |
| Air supply | 0.6Mpa |
| Dimensions | 5170/5670*5200*2300mm |
