NNG3-0/032F-06 DC-DC 100A Single Phase Solid State Relay Manufacturer

NNG3-0/032F-06 DC-DC 100A Single Phase Solid State Relay

Request a Quote

View All: http://electrical-relay.com/2018/2-1-1-100a-single-phase-solid-state-relay.html

The DC-DC 100A single phase solid state relay is used in the automatic control filed like signal light, scintillator, stage lighting control system, instrument and apparatus, medical equipment, copier, automatic washing machine, automatic fire equipment and security system, and it also can be used as the selector switch of the power capacitor which be compensated by the network power factor. In addition, the DC-DC 100A single phase solid state relay is widely used in the bad environment and frequent switching occasions like the chemical industry and coal industry which need prevent from explosion, damp, dust and erosion.

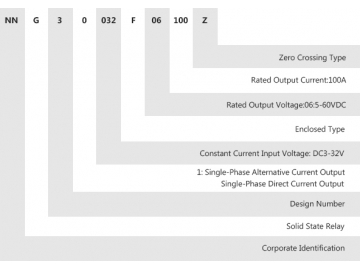

Model explanation

Specification of DC-DC 100A single phase solid state relay

Control voltage	032:4-32VDC
Control current	6-25mA
Connected voltage	4VDC
Turn off voltage	2VDC
Reverse voltage	32VDC
Load voltage	5-60VDC
Load current	100A
Transient voltage	06：11VDC
On-state voltage drop	AC:≤1.6VAC
On-off time	AC:≤10mS
Off-state leakage current	AC:≤10mA
Dielectric withstand voltage	≥2500VAC
Insulation resistance	Testing in 500MΩ,500VDC
Environmental temperature	-30℃~80℃
Installation style	Screw installation
Relay weight	≈30g
Dimension	67mm×48mm×32mm
Notice	1. Load current＞10A ,a radiator is necessary, Load current＞80A, fan is necessary. 2. When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage.

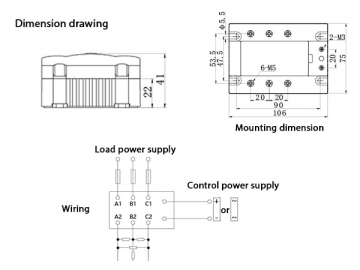

Dimension and installation
